2016 workshop · Suspension

Front Strut and Spring Assembly

204-01 Front Suspension

2016 MustangReference 2,488 / 6,619HTML edition
← Chapter contentsProcedure contents

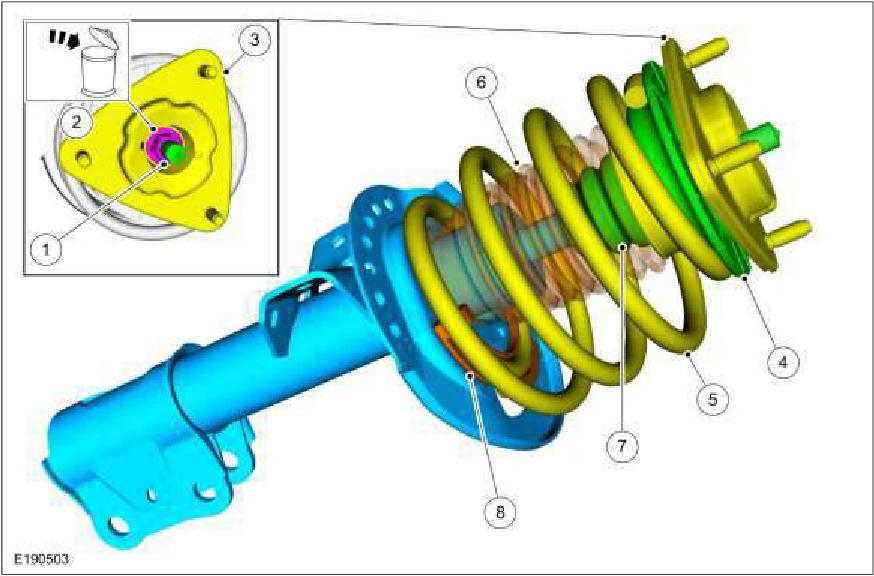

4. Upper spring seat.

5. Spring.

6. Dust boot.

7. Jounce bumper.

8. Lower spring seat.

Front Strut and Spring Assembly — original illustration 1, reference 2488Original colors & callouts · Select to enlarge

ASSEMBLY

1. NOTE: Make sure that the components are installed to the position noted before removal.

To assemble, reverse the disassembly procedure.

2. NOTE: Make sure that the spring is centered in the lower spring seat.

Make sure that the lower spring seat is properly installed.

Source reference 2488
