2016 workshop · Suspension

Wheel Studs

204-01 Front Suspension

2016 MustangReference 2,486 / 6,619HTML edition
← Chapter contentsProcedure contents

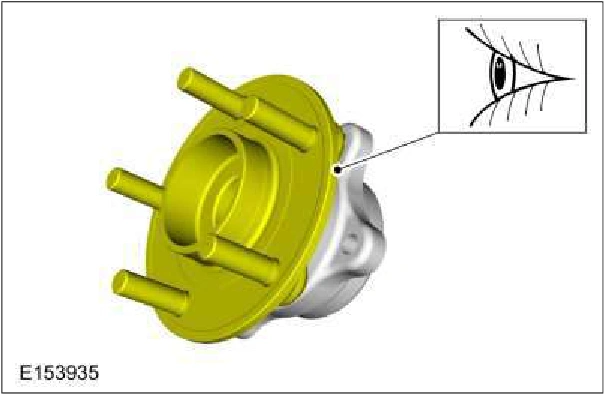

Wheel Studs — original illustration 1, reference 2486Original colors & callouts · Select to enlarge

Installation

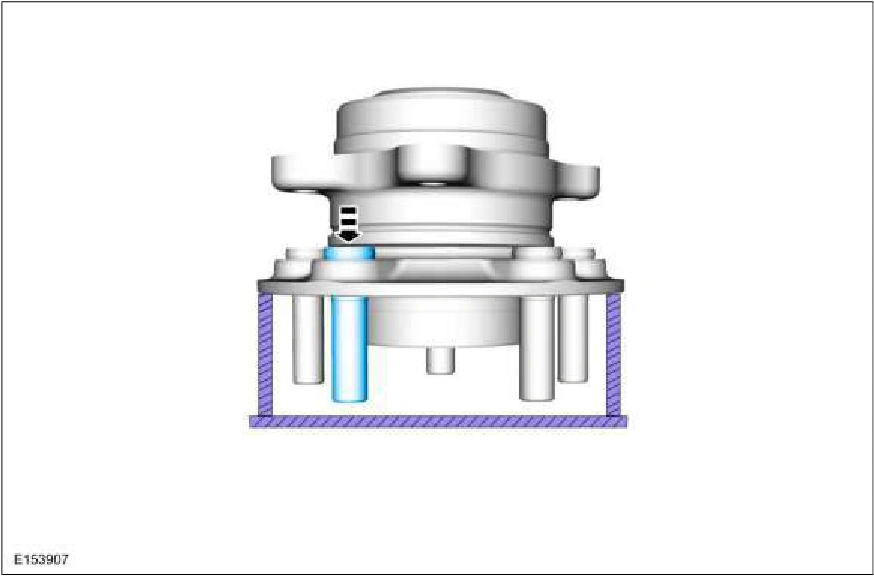

1. Press the wheel stud into the wheel bearing and wheel hub. Use the General Equipment: Hydraulic Press

Wheel Studs — original illustration 2, reference 2486Original colors & callouts · Select to enlarge

2. Install the wheel bearing and wheel hub. Refer to: Front Wheel Bearing and Wheel Hub (204-01 Front Suspension, Removal and Installation). Refer to: Front Wheel Bearing and Wheel Hub - Vehicles With: SVT Performance Package (204-01 Front Suspension, Removal and Installation).

Copyright © 2016 Ford Motor Company

Source reference 2486
