Front Strut and Spring Assembly — 2016 workshop reference 2489

Front Strut and Spring Assembly — original illustration 1, reference 2489Original colors & callouts · Select to enlarge

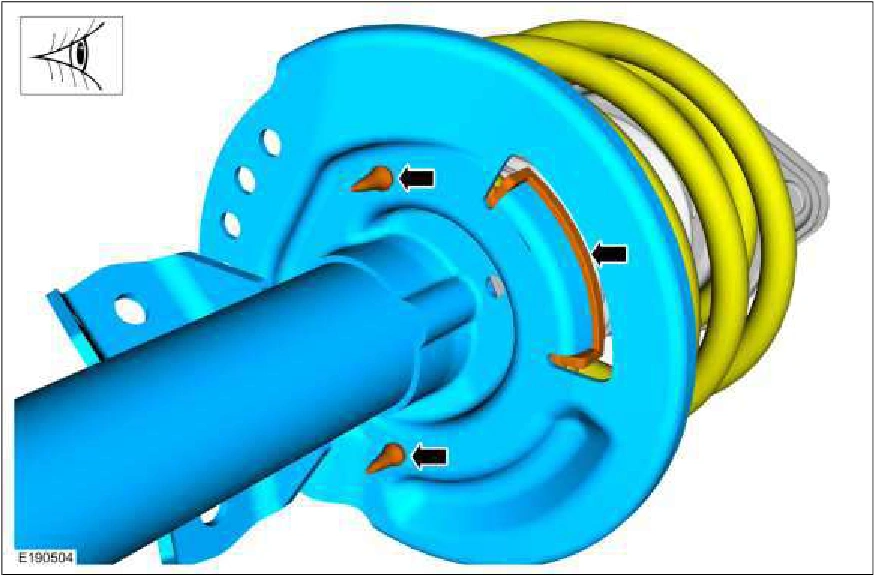

3. NOTE: If bearing is properly seated, there should be equal spacing on all sides.

Make sure that the bearing is properly seated in the mount.

Front Strut and Spring Assembly — original illustration 2, reference 2489Original colors & callouts · Select to enlarge

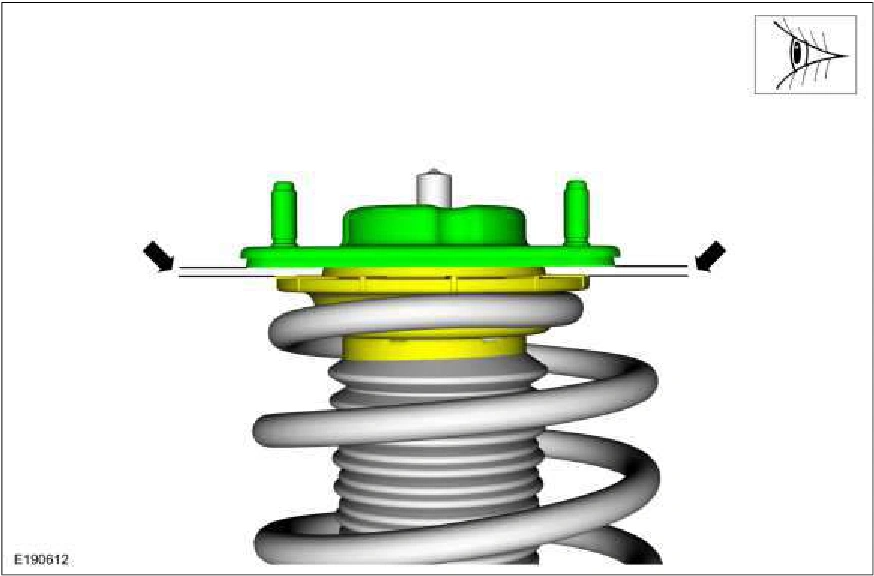

4. NOTE: Typical strut and spring assembly shown.

1. NOTE: Utilize the hex holding feature to prevent the strut rod from turning while installing the strut rod nut.

Install the new strut rod nut. Use the General Equipment: Spring Compressor Use the General Equipment: Vise Torque : 76 lb.ft (103 Nm)

2. Install the cap.
