2016 workshop · Suspension

Wheel Spindle

204-01 Front Suspension

2016 MustangReference 2,483 / 6,619HTML edition
← Chapter contentsProcedure contents

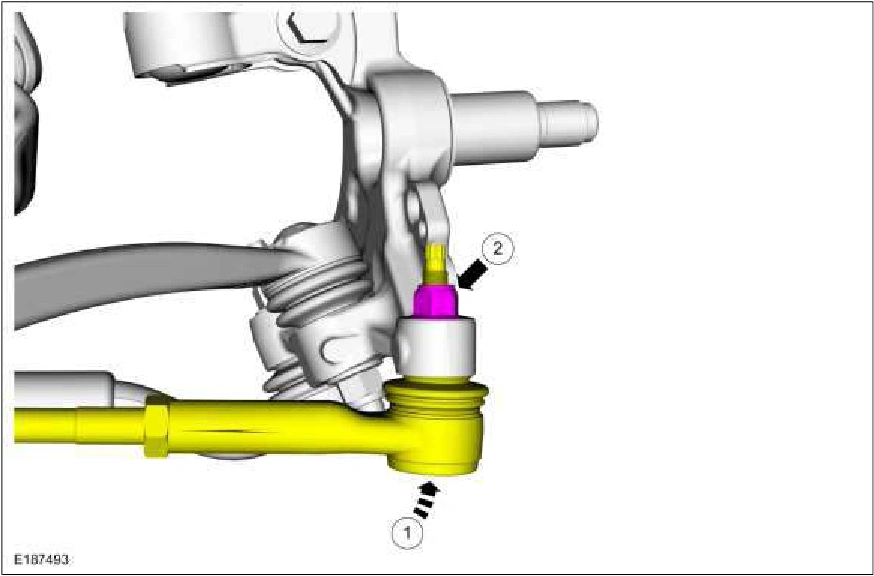

Wheel Spindle — original illustration 1, reference 2483Original colors & callouts · Select to enlarge

Step 5

1. Position the front wheel speed sensor.

2. Install the front wheel speed sensor bolt. Torque : 133 lb.in (15 Nm)

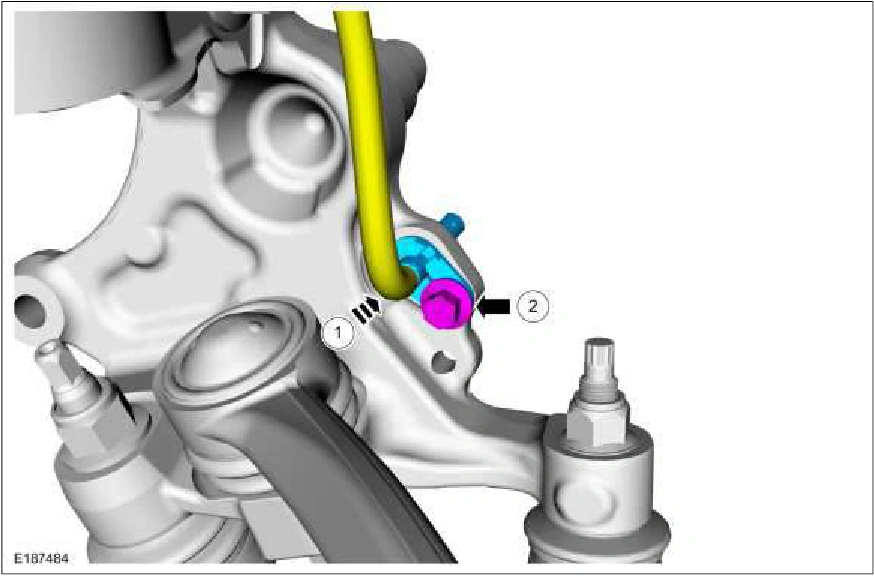

Wheel Spindle — original illustration 2, reference 2483Original colors & callouts · Select to enlarge

6. Install the brake disc shield. Refer to: Brake Disc Shield (206-03 Front Disc Brake, Removal and Installation).

7. Install the front wheel bearing and hub assembly. Refer to: Front Wheel Bearing and Wheel Hub (204-01 Front Suspension, Removal and Installation).

8. Connect the battery ground cable. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

Source reference 2483
