2016 workshop · Suspension

Wheel Spindle

204-01 Front Suspension

2016 MustangReference 2,479 / 6,619HTML edition
← Chapter contentsProcedure contents

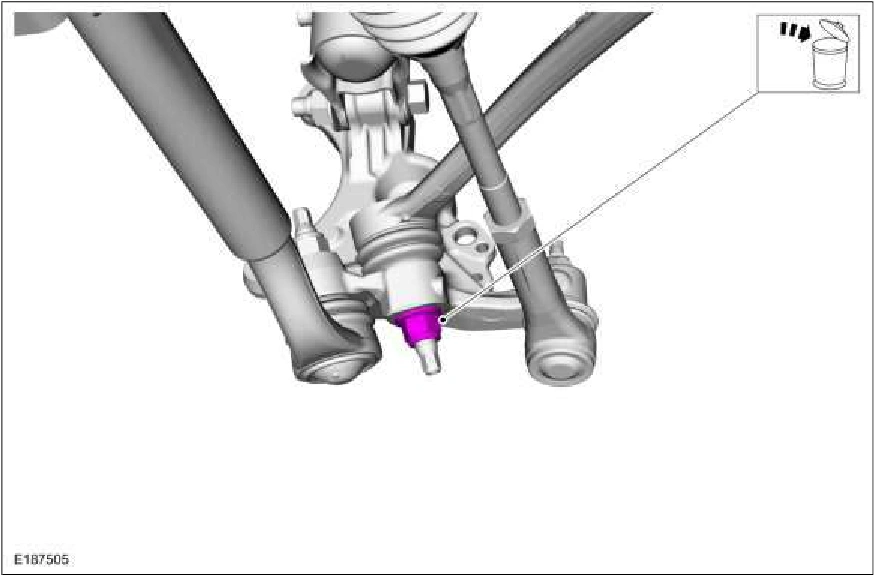

Wheel Spindle — original illustration 1, reference 2479Original colors & callouts · Select to enlarge

7. NOTICE: Do not use a prying device or separator fork between the ball joint and the wheel spindle.

Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.

NOTICE: Use care when releasing the lower arm and wheel spindle into the resting position or damage to the ball joint seal may occur.

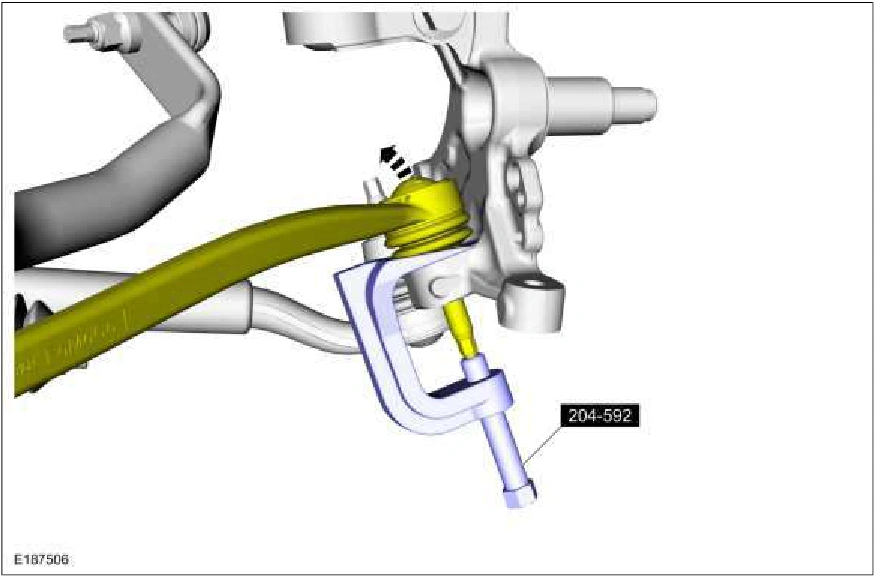

Separate the front lower arm from the wheel spindle. Use Special Service Tool: 204-592 Separator, Lower Arm Ball Joint.

Wheel Spindle — original illustration 2, reference 2479Original colors & callouts · Select to enlarge

8. Remove and discard the rear lower arm outboard nut.
