Wheel Knuckle - Vehicles With: SVT Performance Package

204-01 Front Suspension

2016 MustangReference 2,472 / 6,619HTML edition

← Chapter contents Procedure contents

Wheel Knuckle - Vehicles With: SVT Performance Package — original illustration 1, reference 2472Original colors & callouts · Select to enlarge

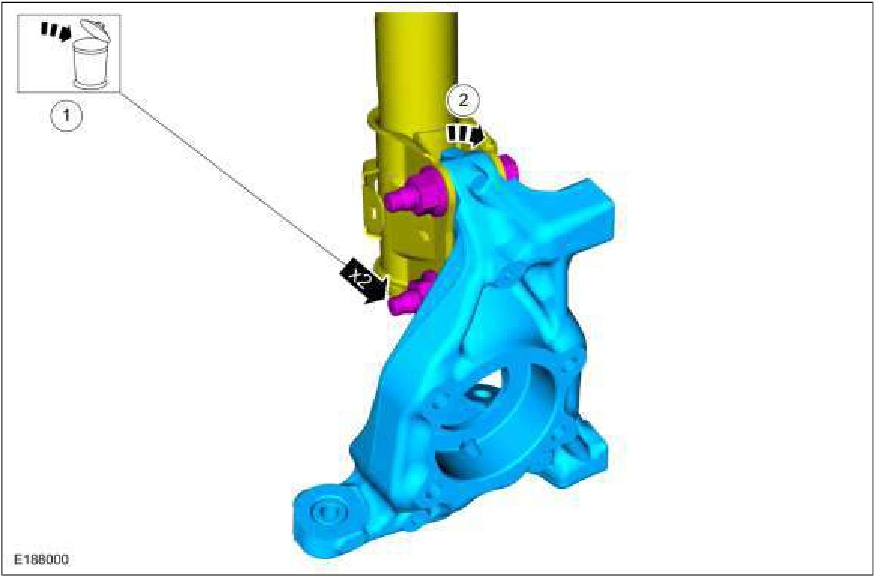

Step 11

1. Remove and discard the 2 strut-to-wheel knuckle bolts and nuts.

2. Remove the wheel knuckle.

Wheel Knuckle - Vehicles With: SVT Performance Package — original illustration 2, reference 2472Original colors & callouts · Select to enlarge

Installation

Step 1

1. Position the wheel knuckle.

2. Install the 2 new strut-to-wheel knuckle bolts and nuts. Torque : 184 lb.ft (250 Nm)

Source reference 2472
