Wheel Knuckle - Vehicles With: SVT Performance Package

204-01 Front Suspension

2016 MustangReference 2,473 / 6,619HTML edition
← Chapter contentsProcedure contents
Wheel Knuckle - Vehicles With: SVT Performance Package — original illustration 1, reference 2473Original colors & callouts · Select to enlarge

Step 2

1. Attach the rear lower arm to the wheel knuckle.

2. Install the new rear lower arm outboard nut. Torque : 76 lb.ft (103 Nm)

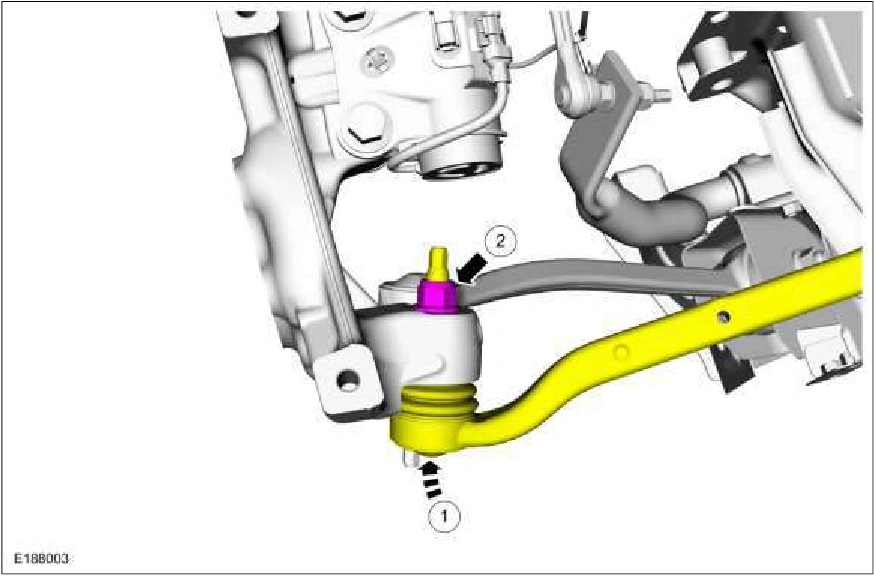

Wheel Knuckle - Vehicles With: SVT Performance Package — original illustration 2, reference 2473Original colors & callouts · Select to enlarge

Step 3

1. Attach the front lower arm to the wheel knuckle.

2. Install the new front lower arm outboard nut. Torque : 76 lb.ft (103 Nm)
