2 | — | Side cutter pliers |
3 | — | Securing ring - inner |
4 | — | Securing ring - outer |
5 | — | Hose clamp pliers |
6 | — | Locking pliers |
7 | — | Long nose pliers |
Drill symbols

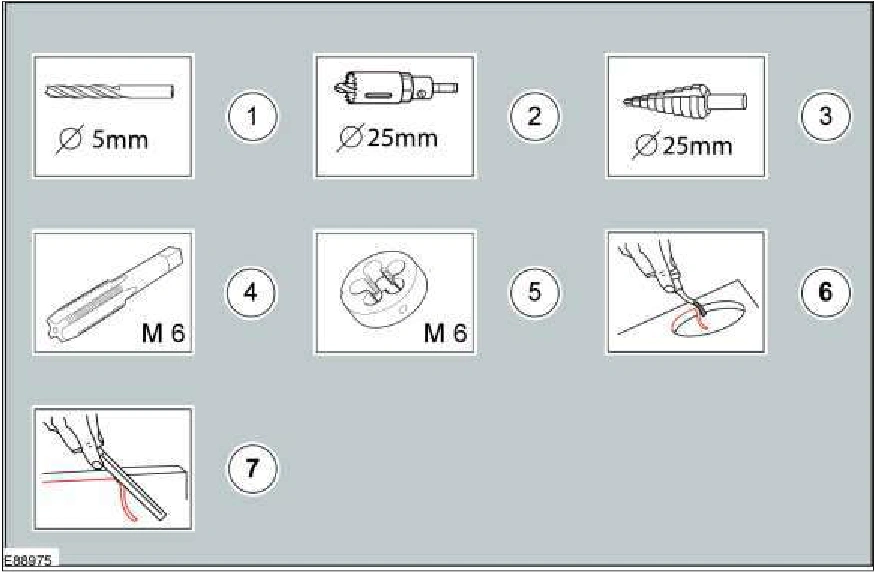

The drill symbols are used to show which type and size of drill bit is recommended to carry out a procedure step.
Item | Part Number | Description |
|---|---|---|
1 | — | Drill bit with a specified diameter |
2 | — | Hole saw with a specified diameter |
3 | — | Stepped drill bit with a specified diameter |
4 | — | Tap with a specified diameter |
5 | — | Die with a specified diameter |
6 | — | Scraper for circular holes |
7 | — | Scraper for straight edges |
Cutting tool symbols
The cutting tool symbols are used to show which type of cutting tool is recommended to carry out a procedure step.
