Wheel Bearing and Wheel Hub

204-02 Rear Suspension 2016 Mustang

Removal and Installation Procedure revision date: 08/25/2015

Base Part Number: 2C299

Special Tool(s) / General Equipment

Wheel Bearing and Wheel Hub — original illustration 1, reference 2528Original colors & callouts · Select to enlarge	205-D070 (D93P-1175-B) Remover, Front Wheel Hub

Removal

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1. Remove the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

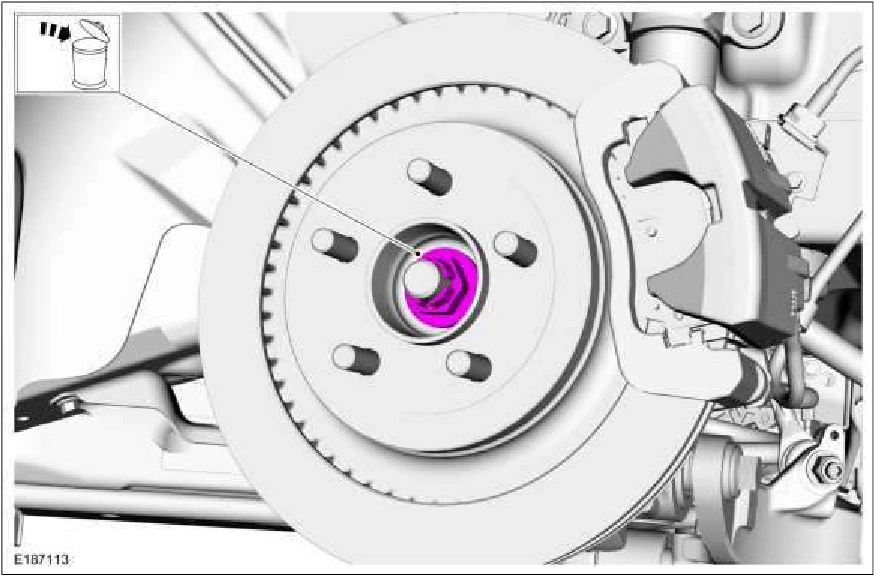

2. Remove and discard the spindle nut.

Wheel Bearing and Wheel Hub — original illustration 2, reference 2528Original colors & callouts · Select to enlarge

3. Press the halfshaft from the hub. Use Special Service Tool: 205-D070 (D93P-1175-B) Remover, Front Wheel Hub.
