Wheel Bearing and Wheel Hub — 2016 workshop reference 2530

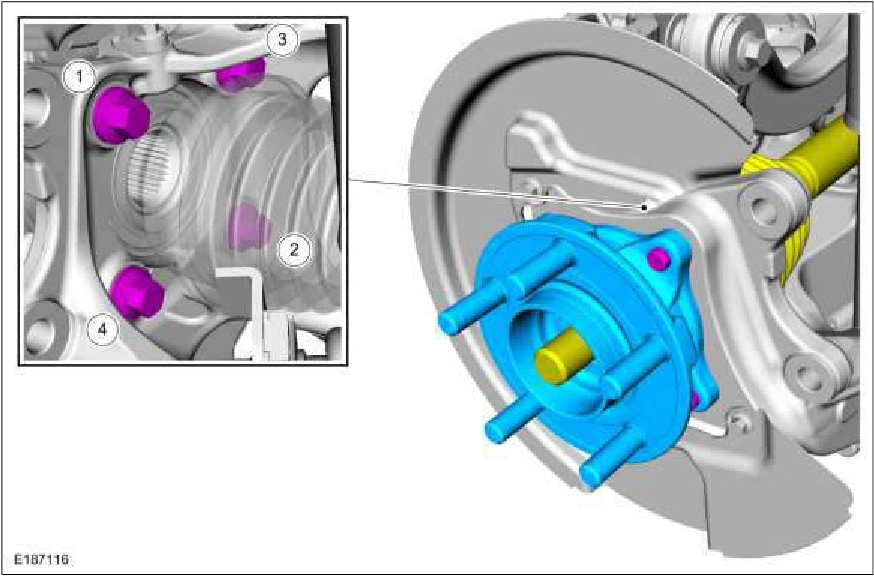

Wheel Bearing and Wheel Hub — original illustration 1, reference 2530Original colors & callouts · Select to enlarge

2. Install the brake disc. Refer to: Brake Disc (206-04 Rear Disc Brake, Removal and Installation).

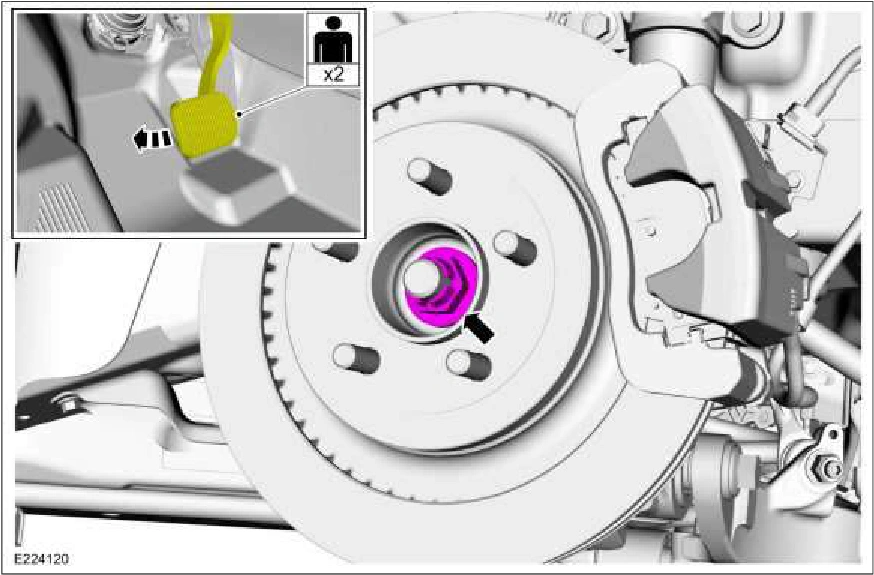

3. NOTE: Apply the brake to keep the halfshaft from rotating.

Install the new spindle nut. Torque : Stage 1: 98 lb.ft (133 Nm) Stage 2: 45°

Wheel Bearing and Wheel Hub — original illustration 2, reference 2530Original colors & callouts · Select to enlarge

4. Install the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
