Wheel Knuckle — 2016 workshop reference 2533

Wheel Knuckle — original illustration 1, reference 2533Original colors & callouts · Select to enlarge

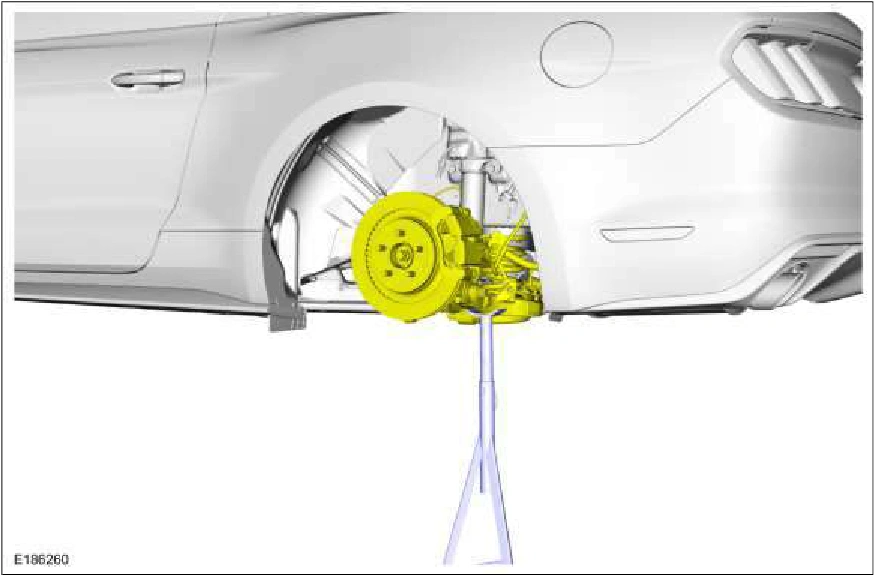

4. Remove the lower arm vertical link. Refer to: Lower Arm Vertical Link (204-02 Rear Suspension, Removal and Installation).

5. NOTE: Support the halfshaft.

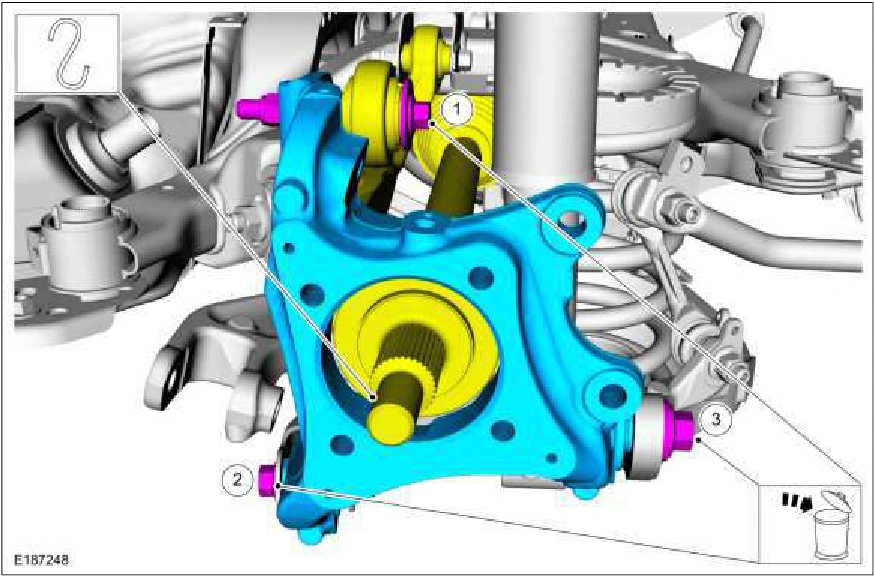

1. Remove and discard the wheel knuckle-to-upper arm bolt and nut.

2. Remove and discard the wheel knuckle-to-toe link bolt and nut.

3. Remove and discard the wheel knuckle-to-lower arm bolt. Remove the knuckle.

Wheel Knuckle — original illustration 2, reference 2533Original colors & callouts · Select to enlarge

Installation

NOTICE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.
