Wheel Knuckle

204-02 Rear Suspension 2016 Mustang

Removal and Installation Procedure revision date: 01/13/2015

Base Part Number: 3K170

Removal

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1. Remove the wheel bearing and wheel hub. Refer to: Wheel Bearing and Wheel Hub (204-02 Rear Suspension, Removal and Installation).

Step 2

1. Remove the wheel speed sensor bolt and position aside the wheel speed sensor.

2. Remove the parking brake cable bracket bolt and position the parking brake cable bracket aside.

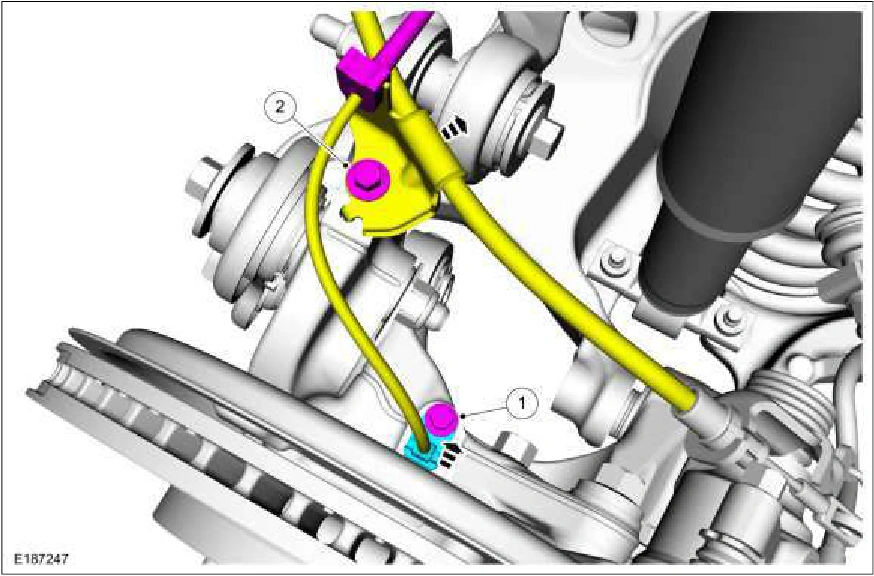

Wheel Knuckle — original illustration 1, reference 2532Original colors & callouts · Select to enlarge

3. Support the suspension at curb height.

Source reference 2532
