Wheel Knuckle — 2016 workshop reference 2534

Step 1

1. Position the wheel knuckle and install the new wheel knuckle-to-lower arm bolt. Torque : 203 lb.ft (275 Nm)

2. Install the new wheel knuckle-to-toe link bolt and nut. Torque : 129 lb.ft (175 Nm)

3. Install the new wheel knuckle-to-upper arm bolt and nut. Torque : 76 lb.ft (103 Nm)

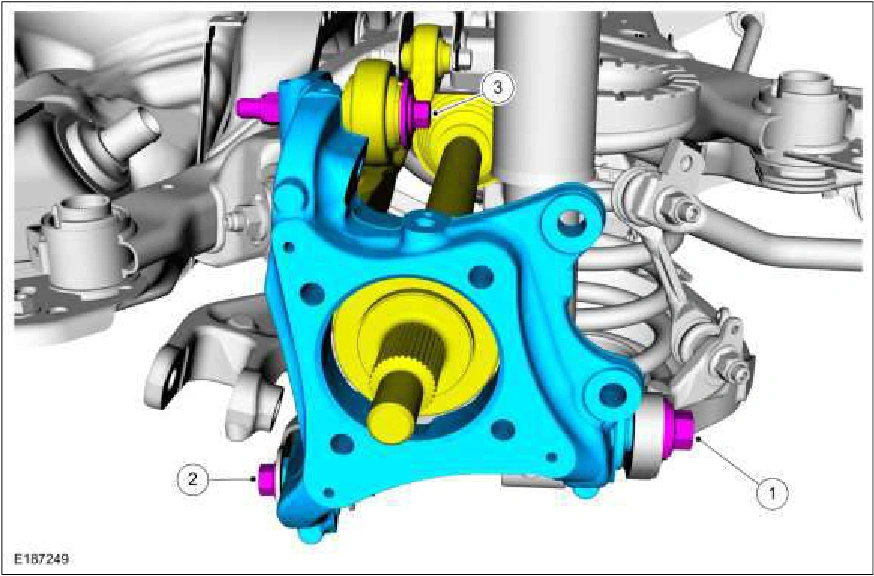

Wheel Knuckle — original illustration 1, reference 2534Original colors & callouts · Select to enlarge

Step 2

1. Position the parking brake cable bracket and install the parking brake cable bracket bolt. Torque : 21 lb.ft (28 Nm)

2. Position the wheel speed sensor and install the wheel speed sensor bolt. Torque : 80 lb.in (9 Nm)

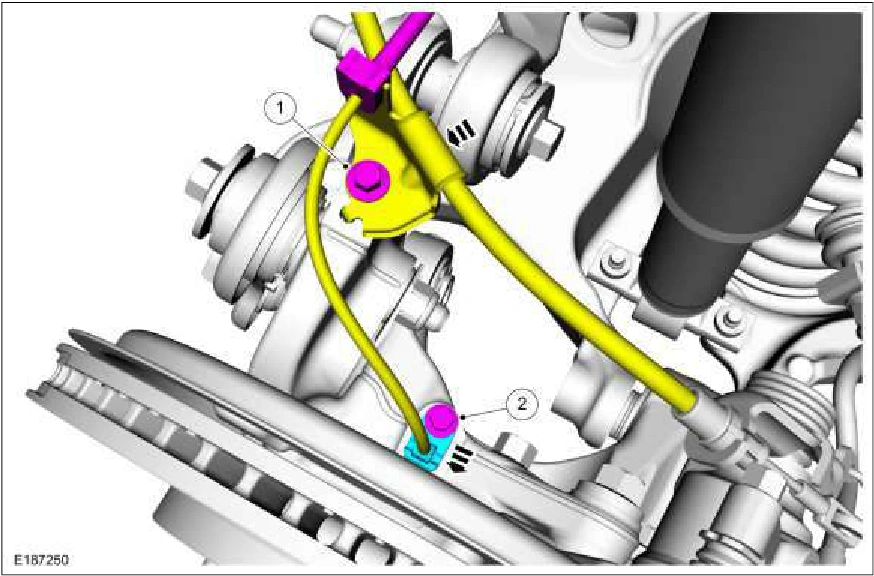

Wheel Knuckle — original illustration 2, reference 2534Original colors & callouts · Select to enlarge

Source reference 2534
