Wheel Bearing and Wheel Hub — 2016 workshop reference 2529

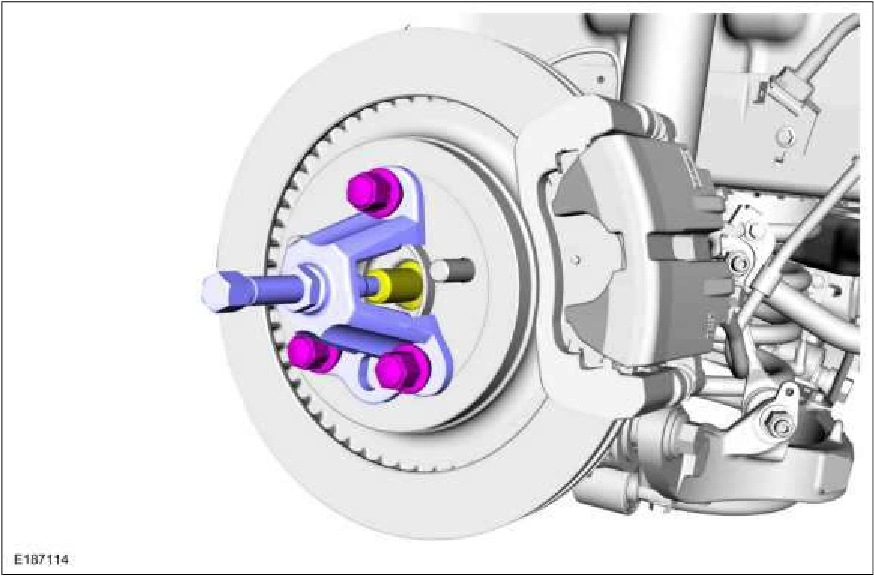

Wheel Bearing and Wheel Hub — original illustration 1, reference 2529Original colors & callouts · Select to enlarge

4. Remove the brake disc. Refer to: Brake Disc (206-04 Rear Disc Brake, Removal and Installation).

5. Remove and discard the 4 wheel bearing and wheel hub bolts and remove the wheel bearing and wheel hub.

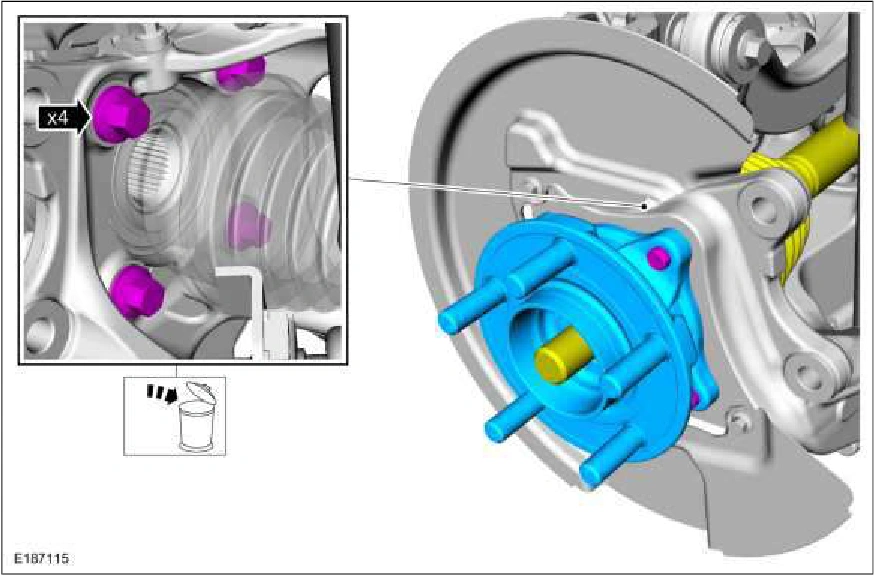

Wheel Bearing and Wheel Hub — original illustration 2, reference 2529Original colors & callouts · Select to enlarge

Installation

1. NOTE: Tighten the wheel bearing and wheel hub bolts in a cross pattern.

Position the wheel bearing and wheel hub and install the 4 new wheel bearing and wheel hub bolts. Torque : 98 lb.ft (133 Nm)

Source reference 2529
