204-05 Vehicle Dynamic Suspension 2016 Mustang

Description and Operation Procedure revision date: 08/11/2015

Vehicle Dynamic Suspension - Component Location

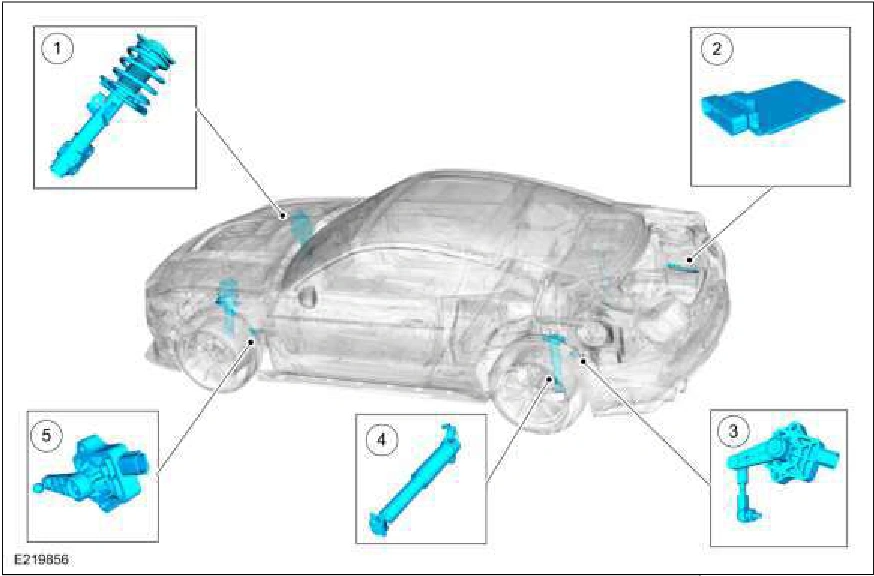

Vehicle Dynamic Suspension - Component Location — original illustration 1, reference 2598Original colors & callouts · Select to enlarge

Item

Description

1

Strut (2 required)

2

VDM

3

Rear height sensor (2 required)

4

Shock (2 required)

5

Front height sensor (2 required)

Copyright © 2016 Ford Motor Company

Source reference 2598
