Driveshaft Runout and Balancing — 2016 workshop reference 2652

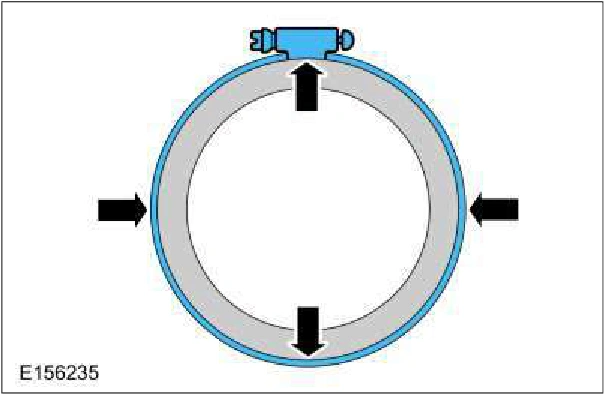

Driveshaft Runout and Balancing — original illustration 1, reference 2652Original colors & callouts · Select to enlarge

15. If the vibration persists, add a second clamp at the same position and recheck for vibration.

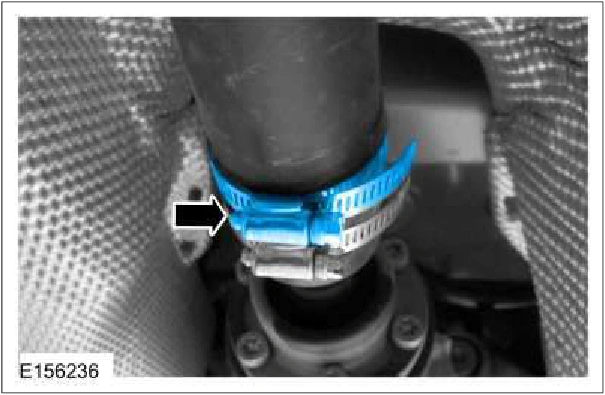

Driveshaft Runout and Balancing — original illustration 2, reference 2652Original colors & callouts · Select to enlarge

16. If no improvement is noted, rotate the clamps in opposite directions, equal distances from the best position determined in Step 14. Separate the clamp heads about 13 mm (1/2 in) and recheck for vibration at the road speed.

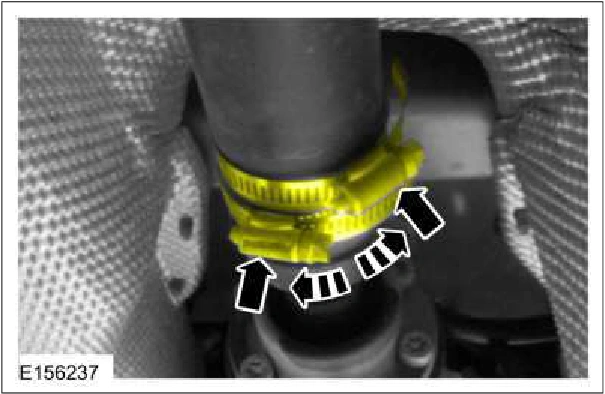

Driveshaft Runout and Balancing — original illustration 3, reference 2652Original colors & callouts · Select to enlarge

17. Repeat the process with increasing separation until the best combination is found or the vibration is reduced to an acceptable level.
