5. NOTICE: Do not over articulate the driveshaft or damage may occur.

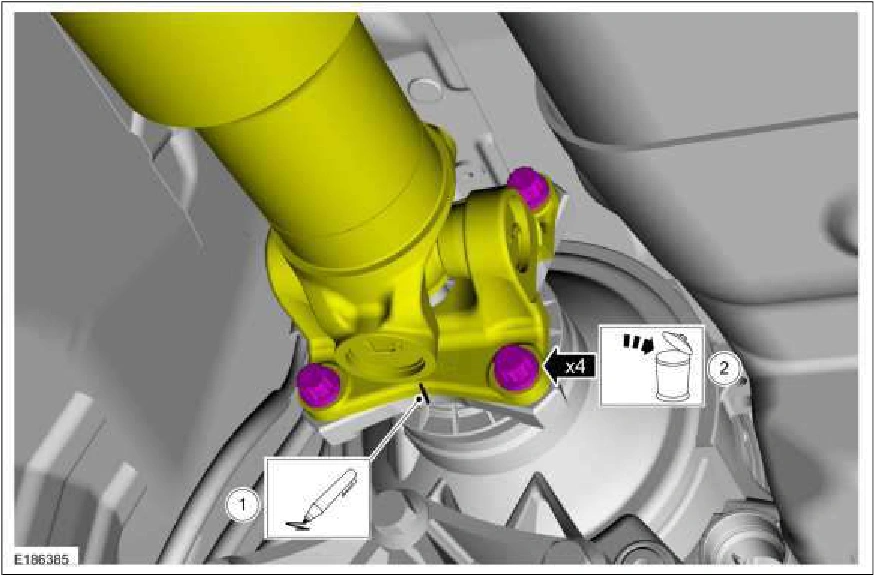

If equipped with 4 bolt flange.

1. Mark the driveshaft to the transmission flange.

2. Remove and discard the driveshaft to transmission flange bolts. Position and support the driveshaft aside.

Driveshaft — original illustration 1, reference 2655Original colors & callouts · Select to enlarge

6. NOTICE: The help of a assistant may be needed. Do not over articulate the driveshaft or damage

may occur.

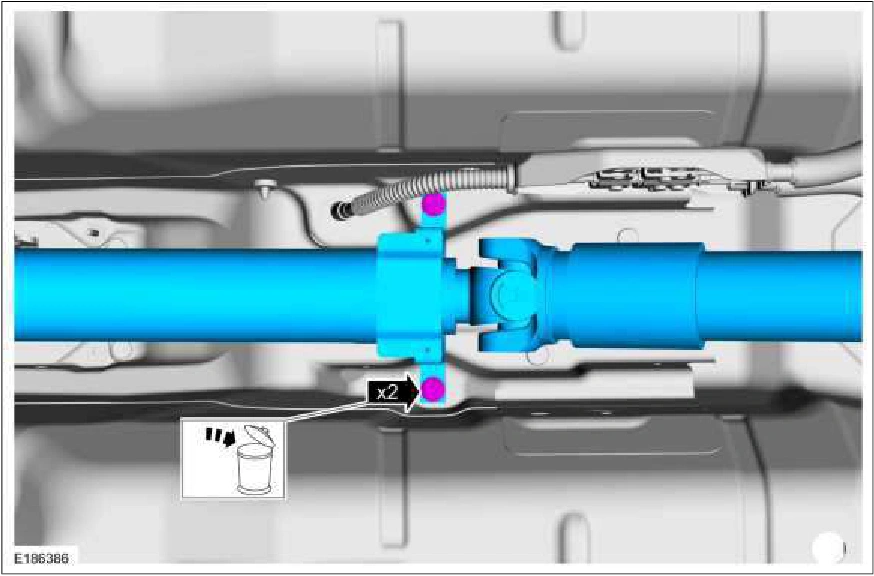

If equipped. Remove and discard the driveshaft center bearing bolts and remove the driveshaft.

Driveshaft — original illustration 2, reference 2655Original colors & callouts · Select to enlarge

Installation
