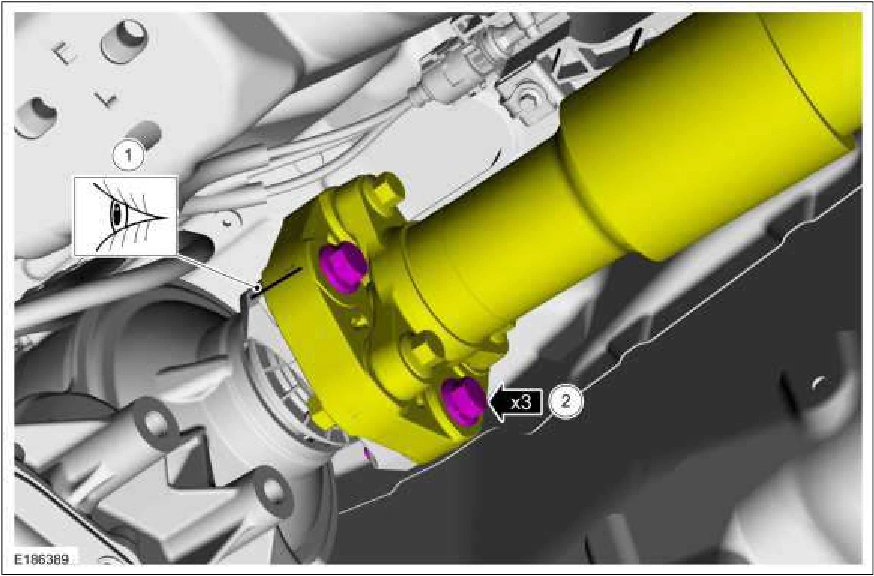

4. NOTICE: Do not over articulate the driveshaft or damage may occur.

If equipped with 4 bolt flange.

1. Align the index-mark on driveshaft to the transmission flange.

2. Install the new driveshaft to transmission flange bolts. Torque : 80 lb.ft (109 Nm)

Driveshaft — original illustration 2, reference 2657Original colors & callouts · Select to enlarge

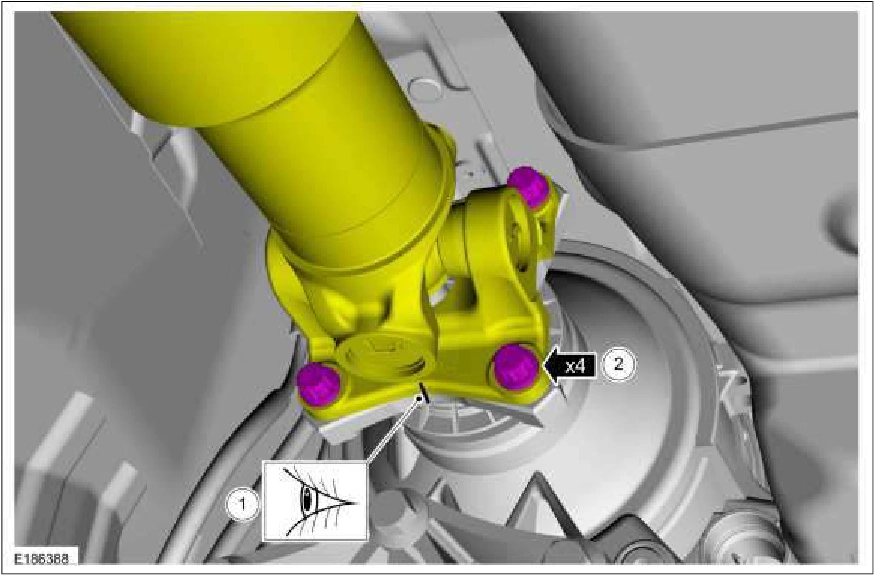

5. NOTICE: The help of a assistant will be needed. Do not over articulate the driveshaft or damage

may occur.

NOTICE: Make sure the mating surfaces are free of any contamination including removing any blue Loctite from any mating surfaces.

Align the index-mark on driveshaft to the rear axle pinion flange.
