Driveshaft Universal Joint

205-01 Driveshaft 2016 Mustang

Disassembly and Assembly Procedure revision date: 01/13/2015

Special Tool(s) / General Equipment

Driveshaft Universal Joint — original illustration 1, reference 2660Original colors & callouts · Select to enlarge	205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw

DISASSEMBLY

NOTICE: Do not, under any circumstance, clamp the driveshaft assembly in the jaws of a vise or similar holding fixture. Denting or localized fracturing may result, causing driveshaft failure during vehicle operation.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the driveshaft. Refer to: Driveshaft (205-01 Driveshaft, Removal and Installation).

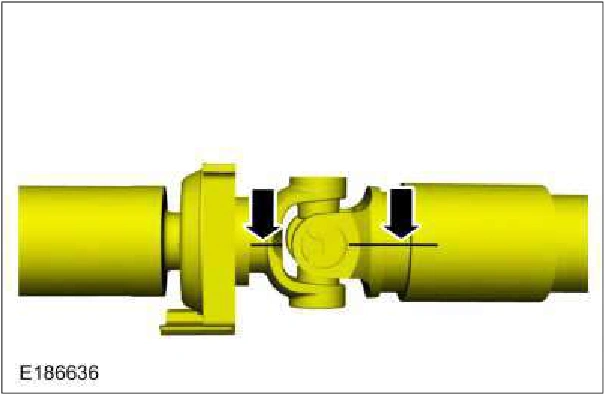

2. NOTE: If the components are not marked and therefore installed incorrectly, driveshaft imbalance can occur.

Index-mark the driveshaft for reassembly.

Driveshaft Universal Joint — original illustration 2, reference 2660Original colors & callouts · Select to enlarge

3. Remove and discard the snap rings.
