Driveshaft Universal Joint

205-01 Driveshaft

2016 MustangReference 2,661 / 6,619HTML edition
← Chapter contentsProcedure contents

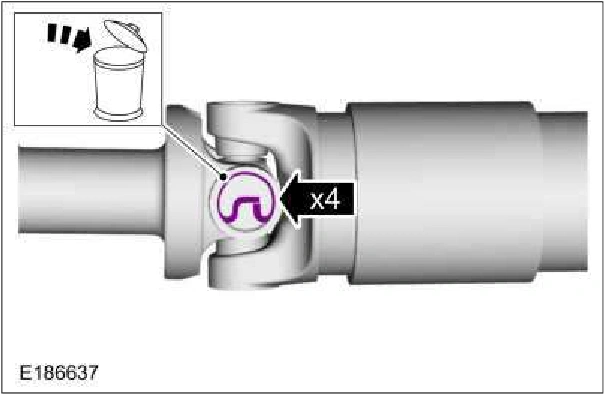

Driveshaft Universal Joint — original illustration 1, reference 2661Original colors & callouts · Select to enlarge

4. Using the special tool, press the u-joint bearing cups out of the driveshaft yoke and remove the driveshaft yoke. Use Special Service Tool: 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw.

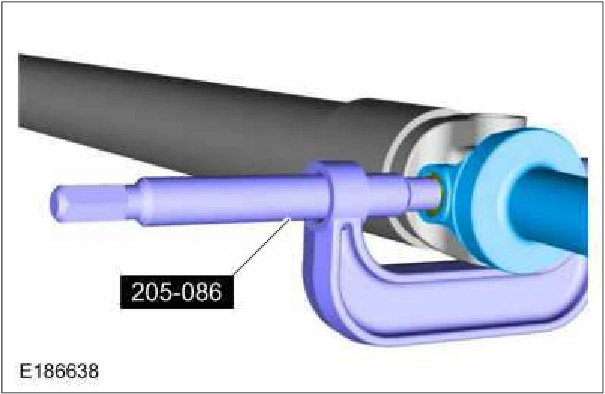

Driveshaft Universal Joint — original illustration 2, reference 2661Original colors & callouts · Select to enlarge

5. Using the special tool, press the u-joint bearing cups out of the driveshaft yoke and remove the u-joint. Use Special Service Tool: 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw.

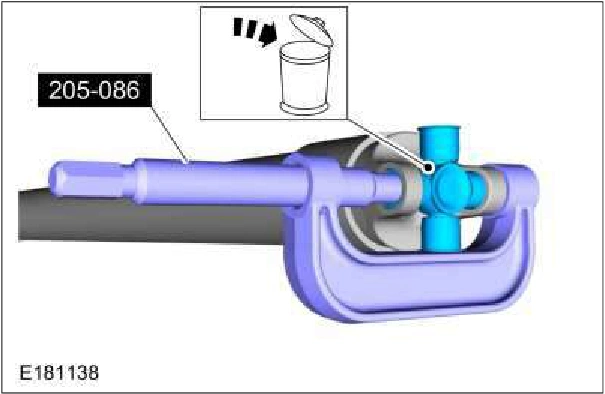

Driveshaft Universal Joint — original illustration 3, reference 2661Original colors & callouts · Select to enlarge

6. Clean and inspect the u-joint bearing cup surfaces.

Source reference 2661
