1. NOTE: If equipped.

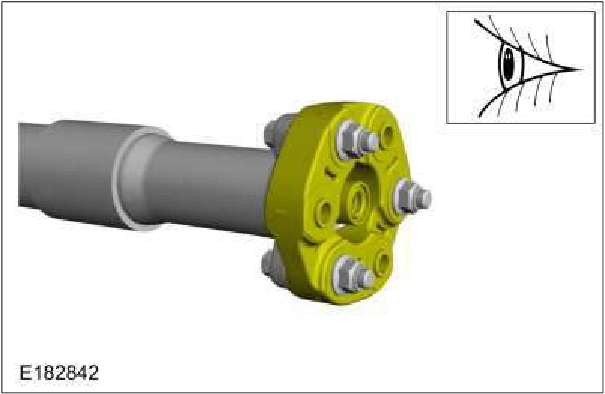

Inspect the flex coupling for cracks. If cracks are present, replace the flex coupling.

Driveshaft — original illustration 1, reference 2656Original colors & callouts · Select to enlarge

2. NOTICE: The help of a assistant may be needed. Do not over articulate the driveshaft or damage

may occur.

NOTE: Align the flex coupling before installing the center bearing bolts.

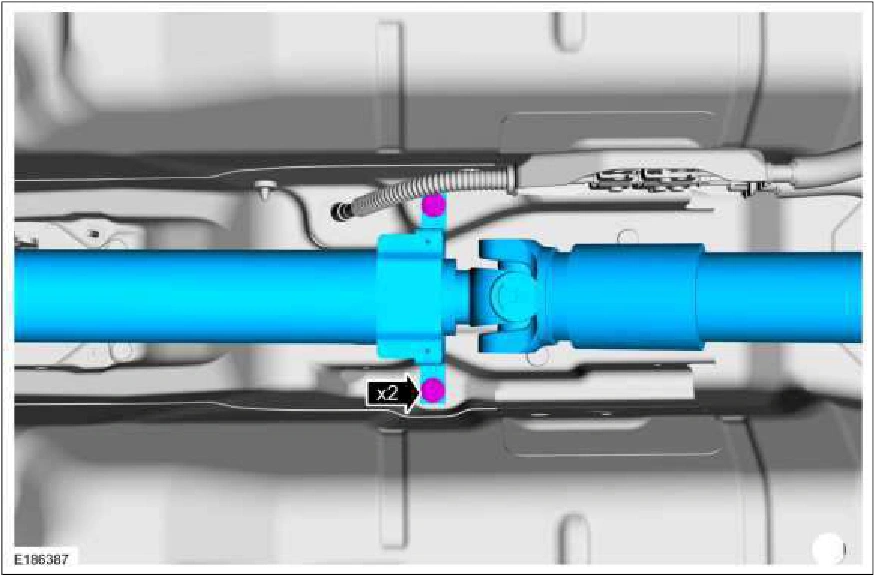

If equipped. Install the driveshaft and the new driveshaft center bearing bolts. Torque : 35 lb.ft (48 Nm)

Driveshaft — original illustration 2, reference 2656Original colors & callouts · Select to enlarge

3. NOTICE: Do not over articulate the driveshaft or damage may occur.

NOTE: Do not force the flex coupling bushing on the transmission output shaft or damage will occur.

If equipped with 3 bolt flex coupling.

1. Align the index-mark on driveshaft flex coupling to the transmission flange.

2. Install the new driveshaft flex coupling to transmission flange bolts. Torque : 81 lb.ft (110 Nm)
