2. NOTE: The driveshaft coupler is a tight fit, and may not be able to remove from the PTU coupler until the center bearing retainers are removed.

Using a screwdriver inserted into the slot on the pinion flange, pry the driveshaft from the pinion flange. Use the General Equipment: Flat Headed Screw Driver

3. Separate the driveshaft from the pinion flange.

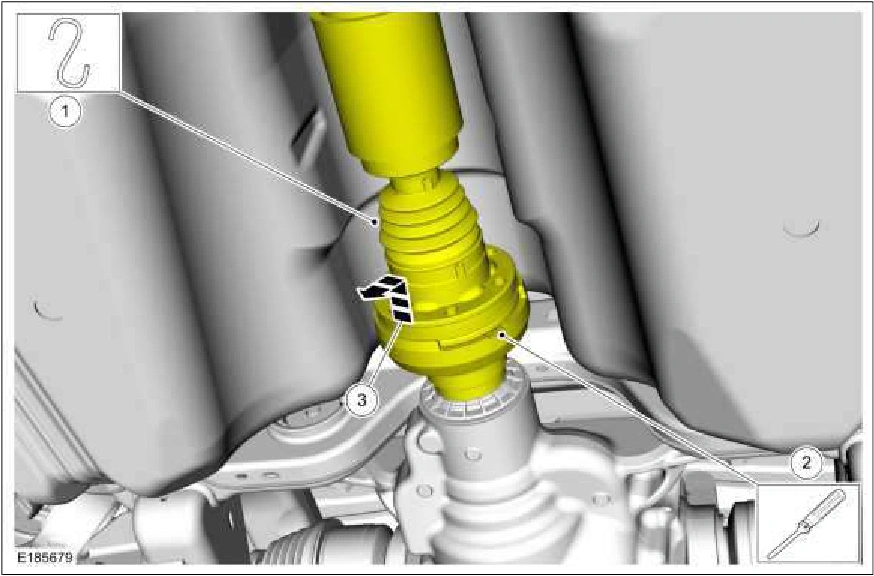

Driveshaft — original illustration 1, reference 2654Original colors & callouts · Select to enlarge

4. NOTICE: Do not over articulate the driveshaft or damage may occur.

If equipped with 3 bolt flange.

1. Mark the driveshaft flex coupling to the transmission flange.

2. Remove and discard the driveshaft to transmission flange bolts. Position and support the driveshaft aside.

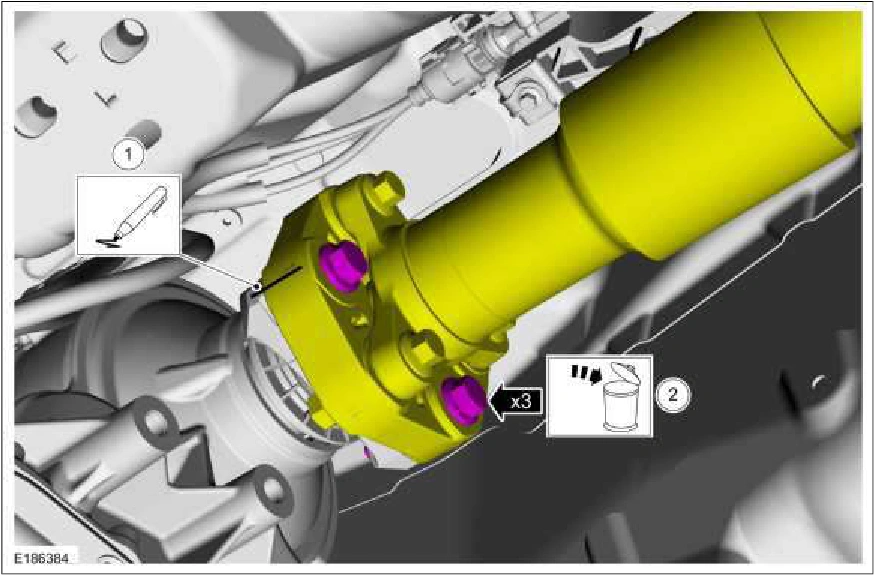

Driveshaft — original illustration 2, reference 2654Original colors & callouts · Select to enlarge
