Flexplate

303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS) 2016 Mustang

Removal and Installation Procedure revision date: 02/10/2015

Removal

1. Remove the transmission. Refer to: Transmission - 5.0L 32V Ti-VCT (307-01 Automatic Transmission - 6-Speed Automatic Transmission - 6R80, Removal and Installation).

2. NOTE: The flexplate bolts are torque-to-yield design and are not reusable.

Remove and discard the bolts. Remove and discard the bolts. Remove the flexplate.

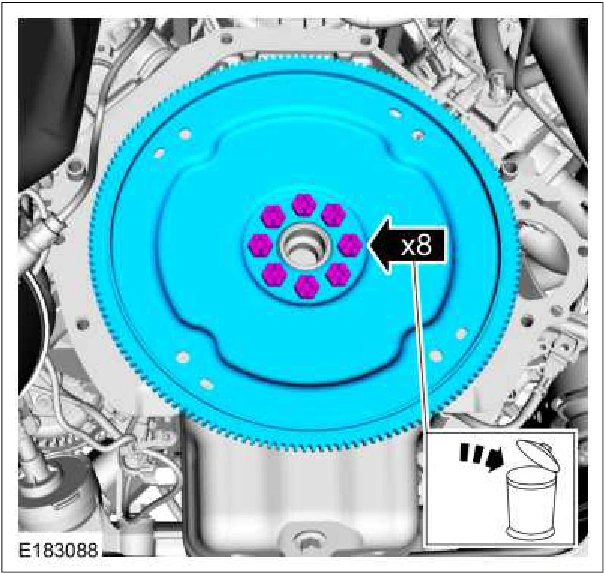

Flexplate — original illustration 1, reference 267Original colors & callouts · Select to enlarge

Installation

1. Install the flexplate and the bolts. Torque : Stage 1: 177 lb.in (20 Nm) Stage 2: 60°

Source reference 267
