Flywheel

303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS) 2016 Mustang

Removal and Installation Procedure revision date: 02/10/2015

Removal

1. Remove the clutch disc. Refer to: Clutch Disc and Pressure Plate - 5.0L 32V Ti-VCT (308-01 Clutch, Removal and Installation).

2. NOTE: The flywheel bolts are torque-to-yield design and are not reusable.

Remove and discard the bolts. Remove the flywheel.

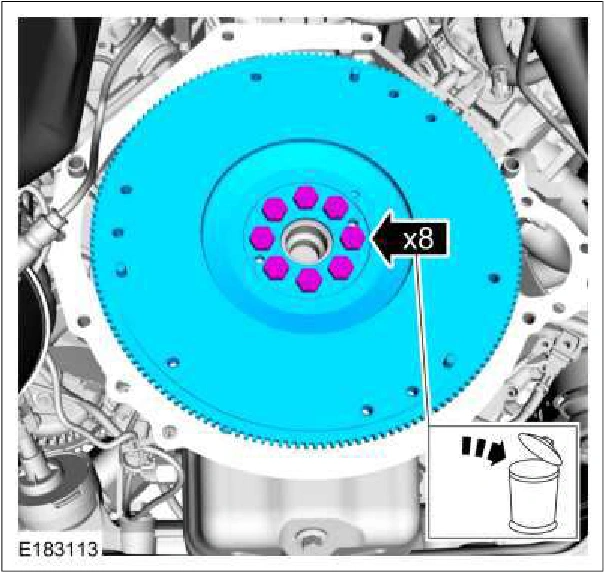

Flywheel — original illustration 1, reference 269Original colors & callouts · Select to enlarge

Installation

1. Install the flywheel and the bolts. Torque : Stage 1: 89 lb.in (10 Nm) Stage 2: 177 lb.in (20 Nm) Stage 3: 60°

Source reference 269
