Intake Manifold — 2016 workshop reference 272

Intake Manifold — original illustration 1, reference 272Original colors & callouts · Select to enlarge

5. Remove the following items:

1. Refer to: Air Cleaner Outlet Pipe (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

2. Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).

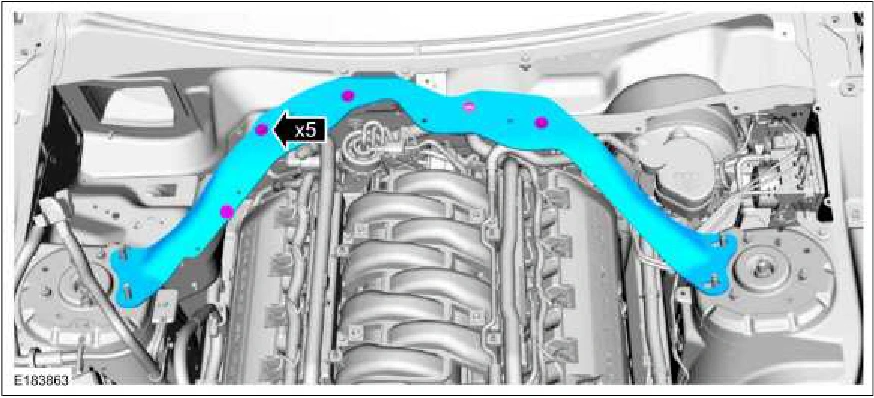

6. Remove the fasteners and the cowl extension.

Intake Manifold — original illustration 2, reference 272Original colors & callouts · Select to enlarge

Step 7

1. Remove the nuts.

2. Position the heater hose aside.

3. Remove the heater hose support.
