Intake Manifold — 2016 workshop reference 275

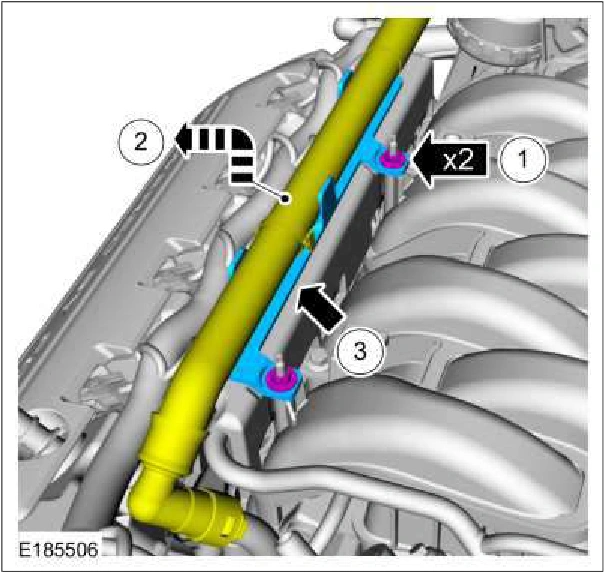

Intake Manifold — original illustration 1, reference 275Original colors & callouts · Select to enlarge

12. Remove the fuel rail insulators.

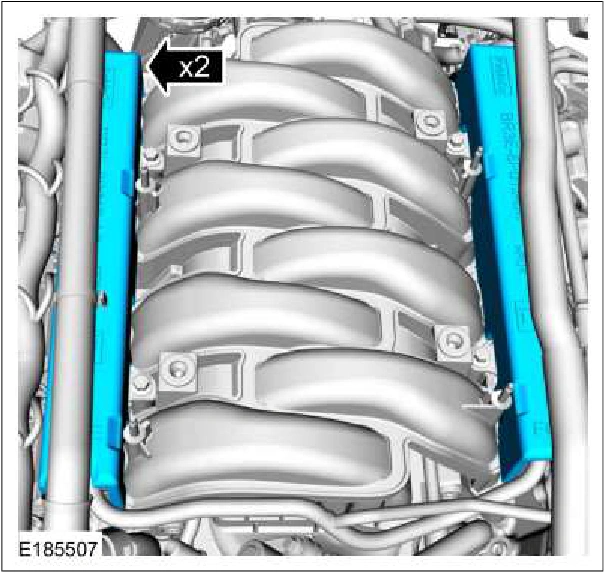

Intake Manifold — original illustration 2, reference 275Original colors & callouts · Select to enlarge

13. Disconnect the RH fuel injector electrical connectors.

Source reference 275
