Intake Manifold — 2016 workshop reference 277

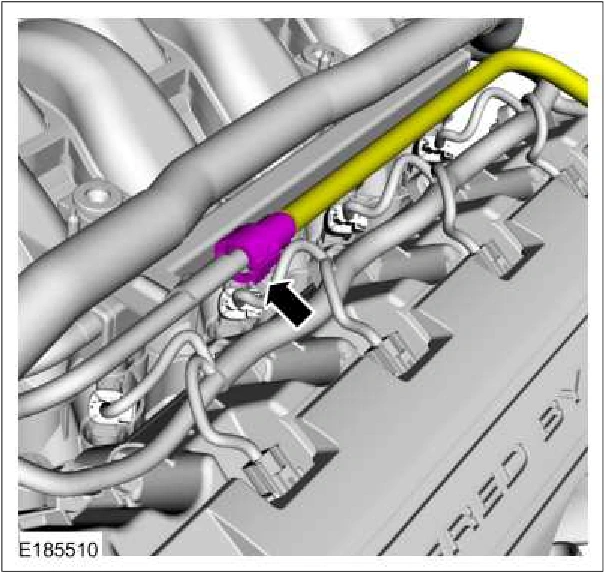

Intake Manifold — original illustration 1, reference 277Original colors & callouts · Select to enlarge

16. NOTE: It is not necessary to remove the fuel rail from the intake manifold assembly.

Remove the fuel rail bolts.

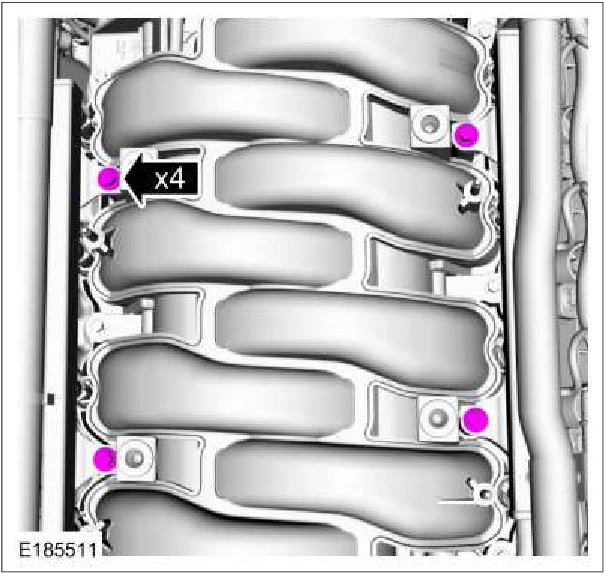

Intake Manifold — original illustration 2, reference 277Original colors & callouts · Select to enlarge

Step 17

1. Loosen the intake manifold bolts.

2. Position the manifold up and towards the front of the engine to access the rear of the manifold.

Source reference 277
