Intake Manifold — 2016 workshop reference 276

Intake Manifold — original illustration 1, reference 276Original colors & callouts · Select to enlarge

14. Disconnect the LH fuel injector electrical connectors.

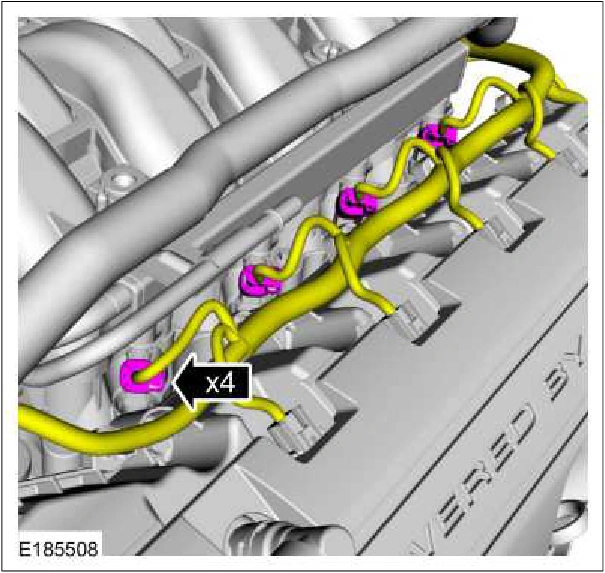

Intake Manifold — original illustration 2, reference 276Original colors & callouts · Select to enlarge

15. Disconnect the fuel supply tube. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).
