2016 workshop · Engine

Intake Manifold

303-01C Engine - 5.0L

2016 Mustang5.0LReference 274 / 6,619HTML edition
← Chapter contentsProcedure contents

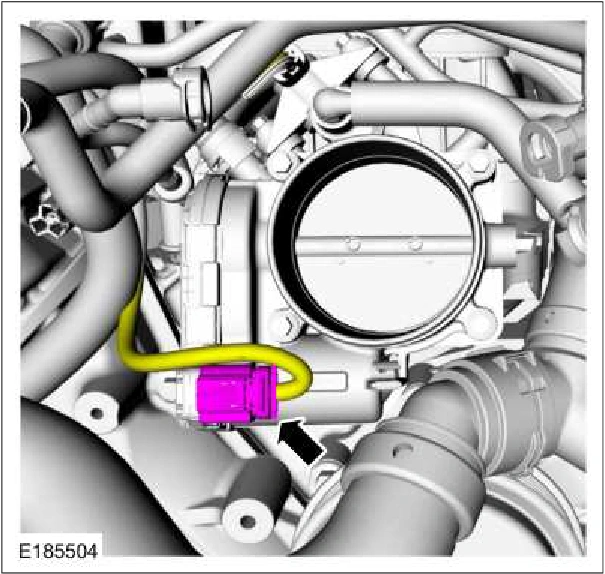

Intake Manifold — original illustration 1, reference 274Original colors & callouts · Select to enlarge

Step 10

1. Disconnect the couplings and remove the crankcase vent tube.

Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

2. Disconnect the EVAP purge valve electrical connector.

3. Disconnect the EVAP tube and position aside. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

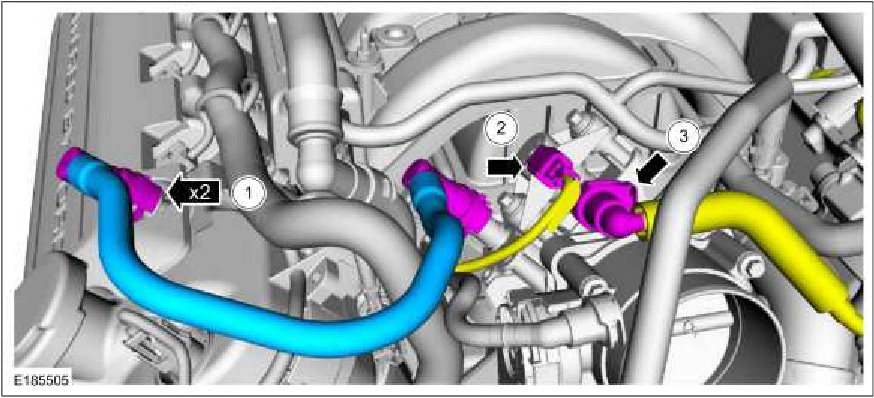

Intake Manifold — original illustration 2, reference 274Original colors & callouts · Select to enlarge

Step 11

1. Remove the nuts.

2. Position the heater hose aside.

3. Remove the heater hose support.
