Intake Manifold

303-01C Engine - 5.0L

2016 Mustang5.0LReference 273 / 6,619HTML edition
← Chapter contentsProcedure contents
Intake Manifold — original illustration 1, reference 273Original colors & callouts · Select to enlarge

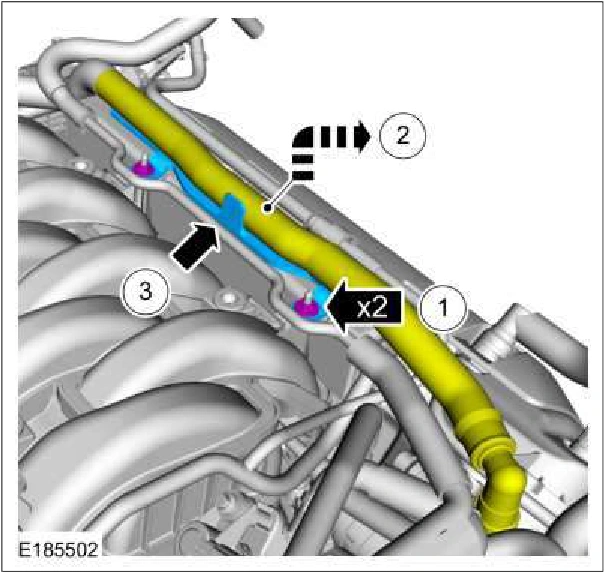

8. Detach the vacuum tube retainer. Disconnect the vacuum tube. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures). Release the clamps and position the vacuum tube aside.

Intake Manifold — original illustration 2, reference 273Original colors & callouts · Select to enlarge

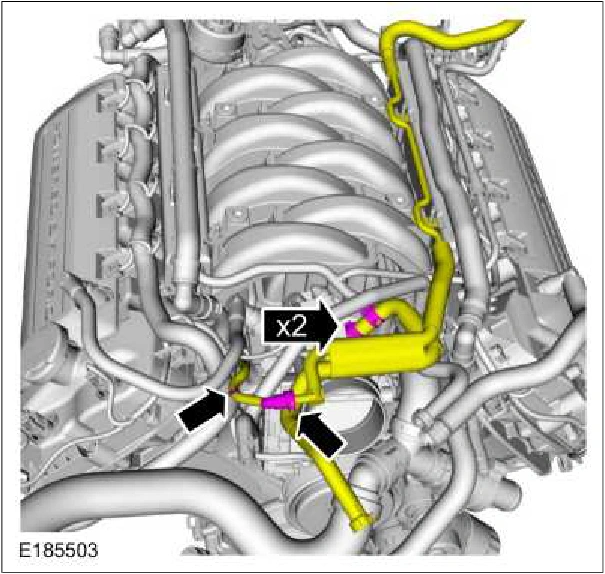

9. Disconnect the throttle body electrical connector.
