Intake Manifold — 2016 workshop reference 280

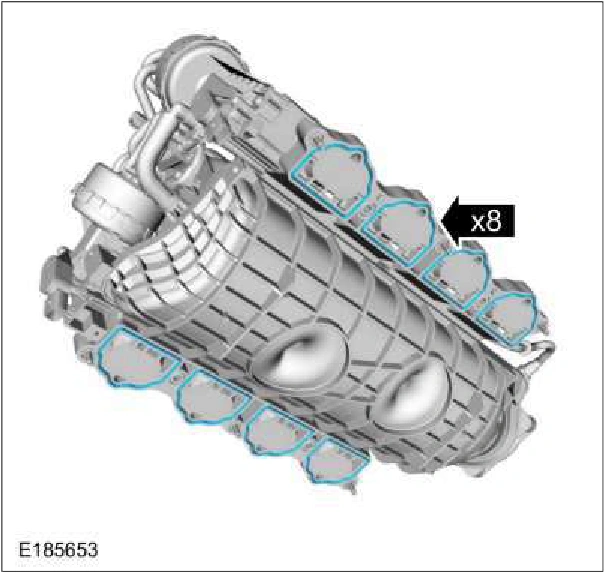

Intake Manifold — original illustration 1, reference 280Original colors & callouts · Select to enlarge

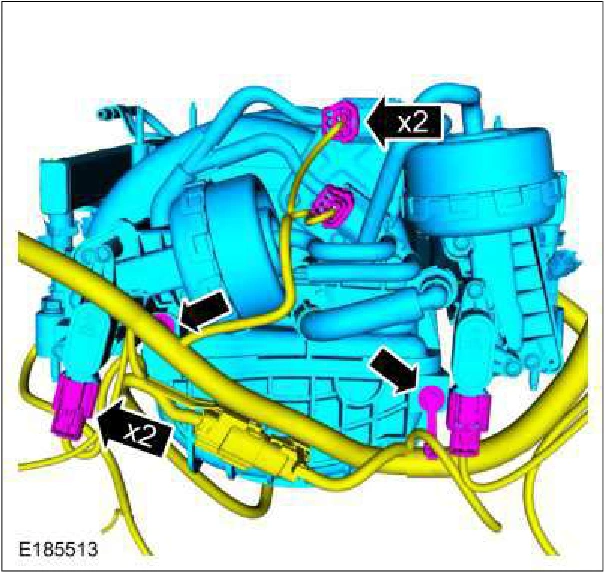

2. Position the intake manifold onto the engine. Attach the wiring harness retainers. Connect the wiring harness electrical connectors.

Intake Manifold — original illustration 2, reference 280Original colors & callouts · Select to enlarge

Step 3

1. Position the manifold to the installed position.

2. Tighten the intake manifold bolts. Torque : Stage 1: 106 lb.in (12 Nm) Stage 2: 35°

Source reference 280
