Intake Manifold — 2016 workshop reference 281

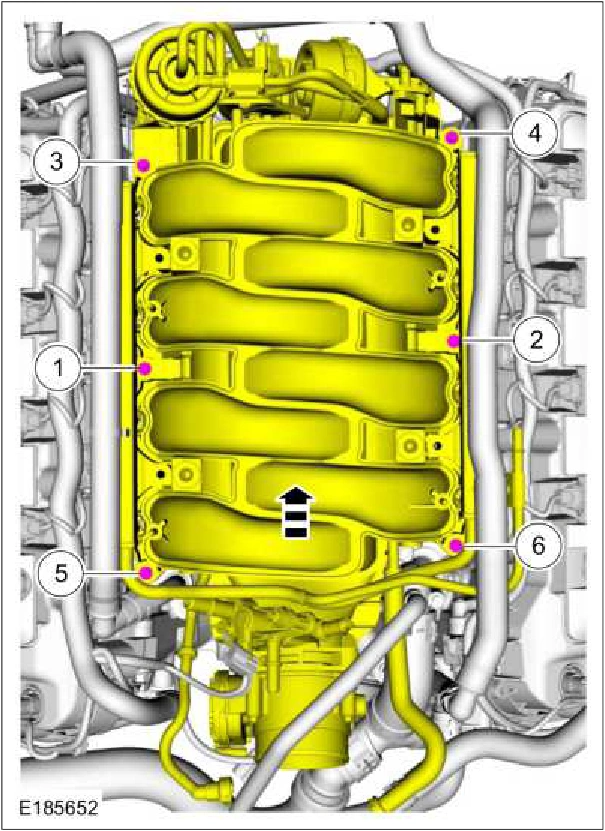

Intake Manifold — original illustration 1, reference 281Original colors & callouts · Select to enlarge

4. Install the fuel rail bolts. Torque : Stage 1: 89 lb.in (10 Nm) Stage 2: 90°

Source reference 281
