Intake Manifold

303-01C Engine - 5.0L

2016 Mustang5.0LReference 284 / 6,619HTML edition
← Chapter contentsProcedure contents

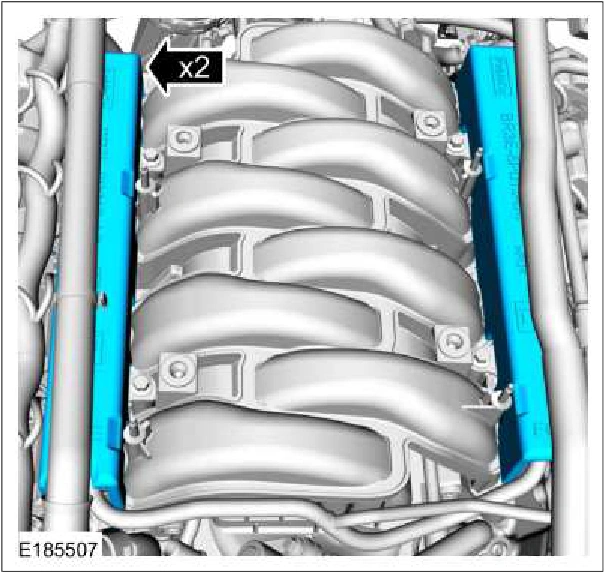

Intake Manifold — original illustration 1, reference 284Original colors & callouts · Select to enlarge

Step 9

1. Install the heater hose support.

2. Position the heater hose.

3. Install the nuts. Torque : 62 lb.in (7 Nm)

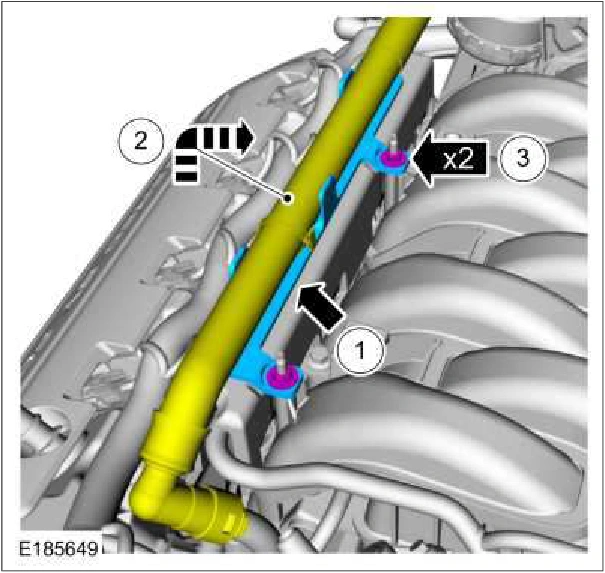

Intake Manifold — original illustration 2, reference 284Original colors & callouts · Select to enlarge

Step 10

1. Install the crankcase vent tube and connect the couplings.

Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

2. Connect the EVAP purge valve electrical connector.

3. Connect the EVAP tube. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

Source reference 284
