Intake Manifold — 2016 workshop reference 286

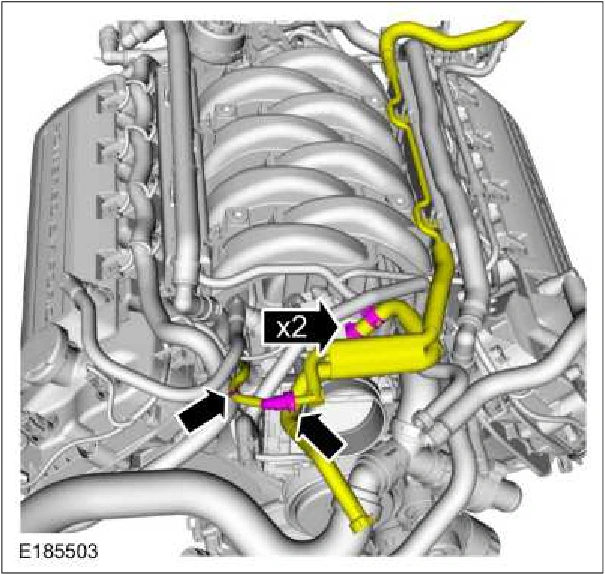

Intake Manifold — original illustration 1, reference 286Original colors & callouts · Select to enlarge

Step 13

1. Install the heater hose support.

2. Position the heater hose.

3. Install the nuts. Torque : 62 lb.in (7 Nm)

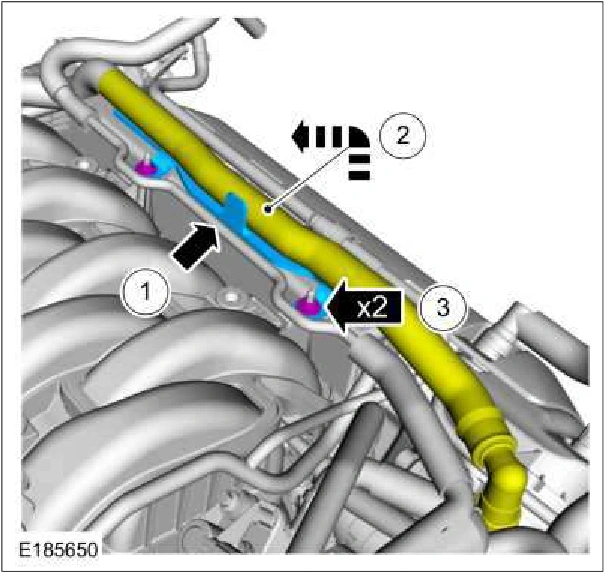

Intake Manifold — original illustration 2, reference 286Original colors & callouts · Select to enlarge

14. Install the cowl extension and fasteners. Torque : 26 lb.ft (35 Nm)
