Oil Cooler

303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS) 2016 Mustang

Removal and Installation Procedure revision date: 02/10/2015

Special Tool(s) / General Equipment

Locking Pliers

Materials

Name	Specification
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) XO-5W20-QSP (U.S.)	WSS-M2C945-A
Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) VC-3-B (U.S.)	WSS-M97B44-D

Removal

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

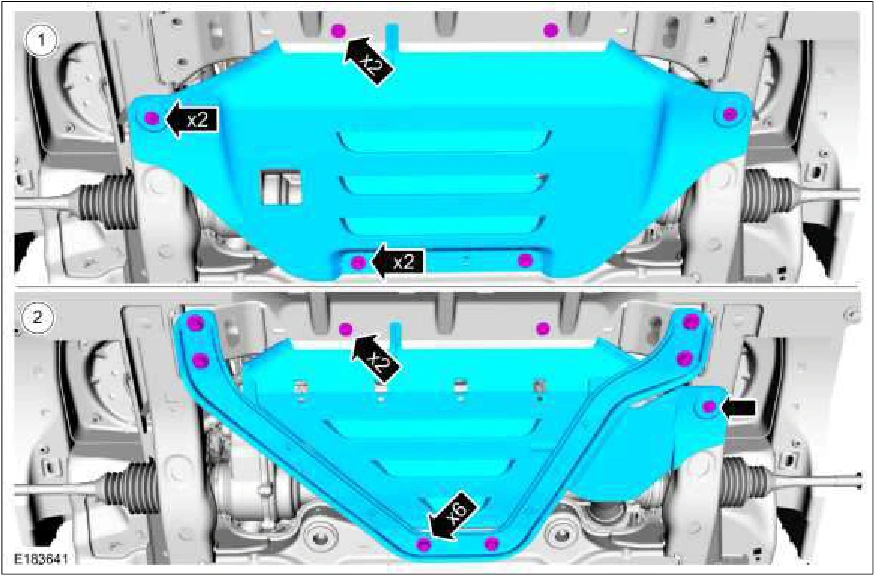

2. NOTE: Vehicles are equipped with either an underbody shield or a subframe bracket and underbody shield assembly.

1. Loosen the 2 front bolts, remove the remaining bolts and the underbody shield.

2. Loosen the 2 front bolts, remove the remaining bolts and the subframe bracket and underbody shield assembly.

Oil Cooler — original illustration 1, reference 289Original colors & callouts · Select to enlarge

3. Remove and discard the engine oil filter.

Source reference 289
