Oil Cooler — 2016 workshop reference 291

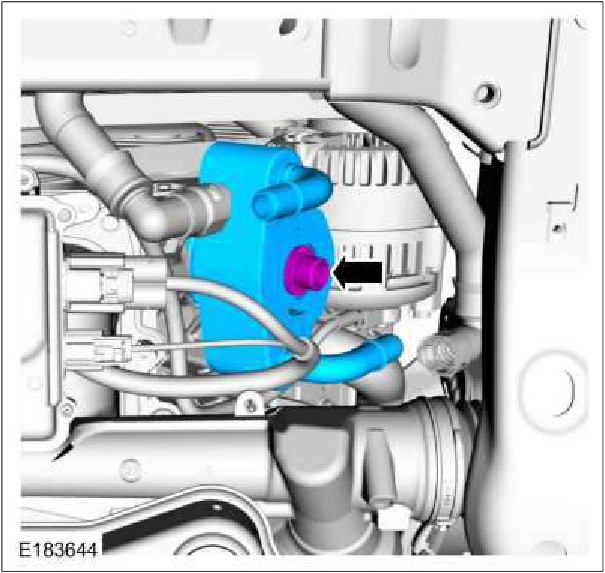

Oil Cooler — original illustration 1, reference 291Original colors & callouts · Select to enlarge

6. NOTICE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist.

Failure to correct these concerns may cause engine failure. To diagnose mechanical concerns, refer to Section 303-00.

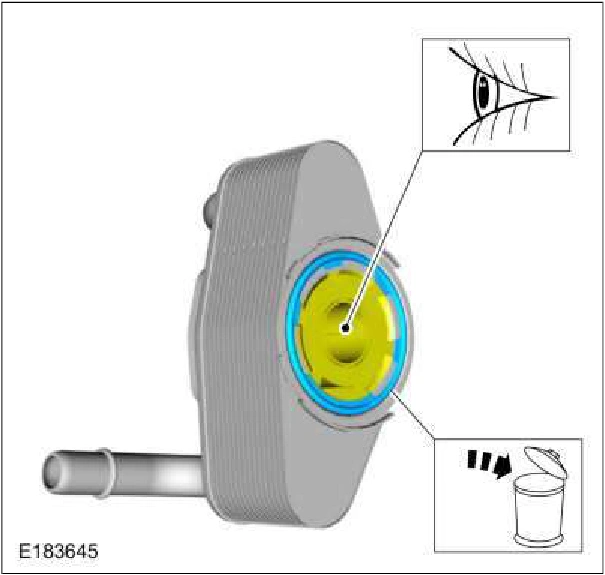

Remove and discard the gasket. Inspect the oil cooler.

Oil Cooler — original illustration 2, reference 291Original colors & callouts · Select to enlarge

Installation

1. Install a new gasket.
