Oil Cooler — 2016 workshop reference 290

Oil Cooler — original illustration 1, reference 290Original colors & callouts · Select to enlarge

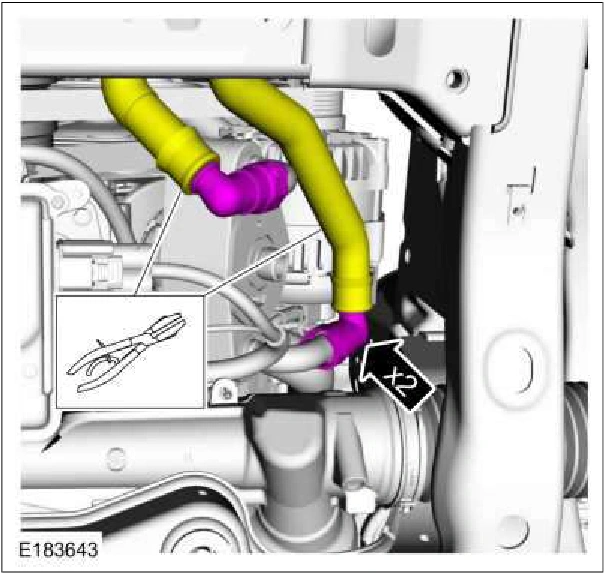

4. Using hose locking pliers, clamp the oil cooler coolant hoses. Use the General Equipment: Locking Pliers Disconnect the coolant hoses.

Oil Cooler — original illustration 2, reference 290Original colors & callouts · Select to enlarge

5. Remove the retainer and the oil cooler.

Source reference 290
