Oil Cooler — 2016 workshop reference 293

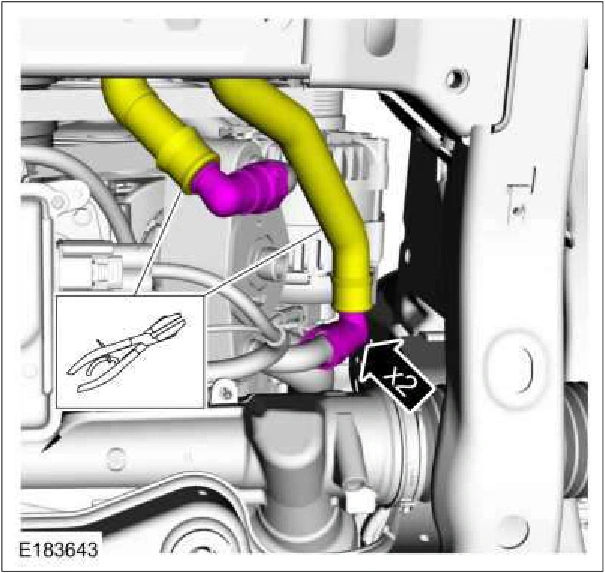

Oil Cooler — original illustration 1, reference 293Original colors & callouts · Select to enlarge

4. NOTE: Do not lubricate the O-ring seal.

Install a new oil filter. Torque : Stage 1: 44 lb.in (5 Nm) Stage 2: 180°

Oil Cooler — original illustration 2, reference 293Original colors & callouts · Select to enlarge

5. NOTE: Vehicles are equipped with either an underbody shield or a subframe bracket and underbody shield assembly.

1. Install the underbody shield and the bolts. Torque : A: 97 lb.in (11 Nm) B: 18 lb.in (2 Nm)
