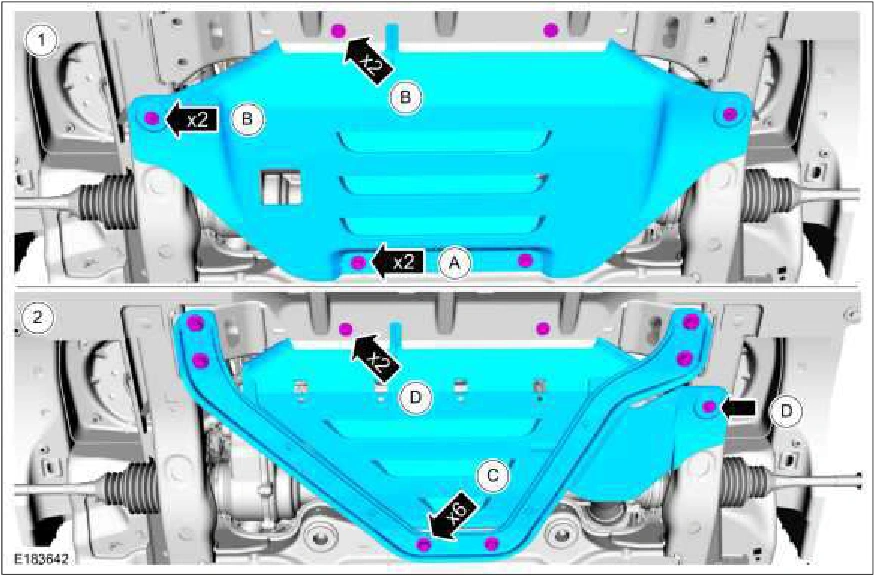

2. Install the subframe bracket and underbody shield assembly and the bolts. Torque : C: 46 lb.ft (63 Nm) D: 18 lb.in (2 Nm)
6. Inspect and adjust the coolant level in the degas bottle Material : Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) / VC-3-B (U.S.) (WSS-M97B44-D)
7. Inspect and adjust the engine oil level. Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)
