Oil Pan

303-01C Engine - 5.0L

2016 Mustang5.0LReference 297 / 6,619HTML edition
← Chapter contentsProcedure contents
Oil Pan — original illustration 1, reference 297Original colors & callouts · Select to enlarge

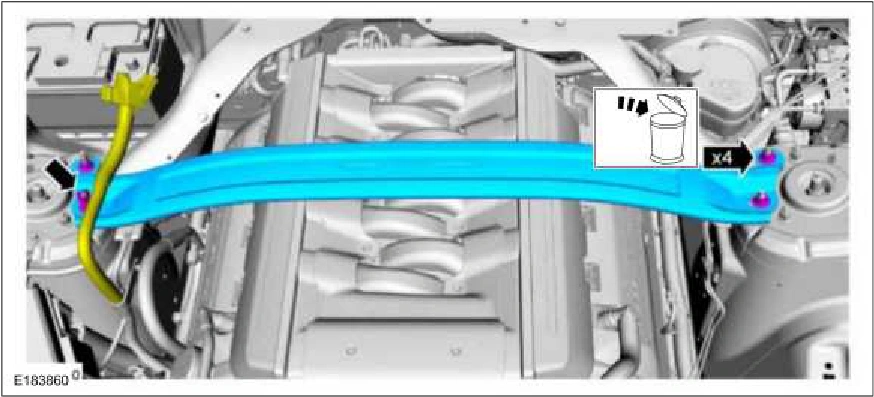

5. If equipped with a strut tower cross brace, detach the wiring harness retainer. Remove the nuts and the strut tower cross brace.

Oil Pan — original illustration 2, reference 297Original colors & callouts · Select to enlarge

6. NOTE: The engine appearance cover rubber grommets may remain on the cover. If so, remove the grommets from the cover and install them on the intake manifold before installing the cover.

Remove the engine appearance cover.

Source reference 297
