Oil Cooler — 2016 workshop reference 292

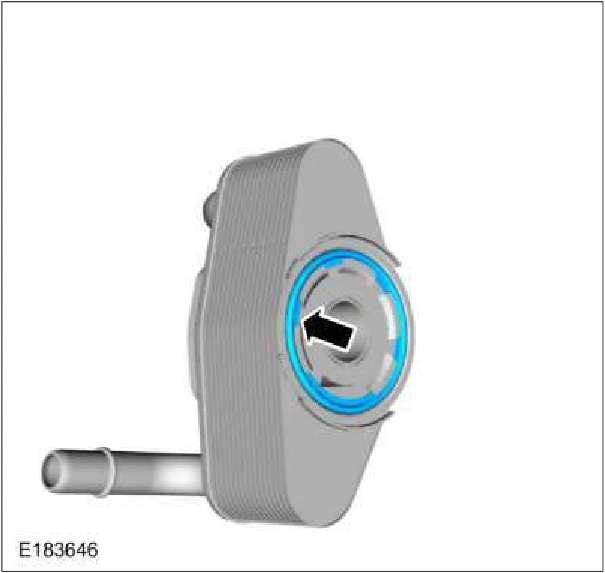

Oil Cooler — original illustration 1, reference 292Original colors & callouts · Select to enlarge

2. Install the oil cooler and the retainer. Torque : 43 lb.ft (58 Nm)

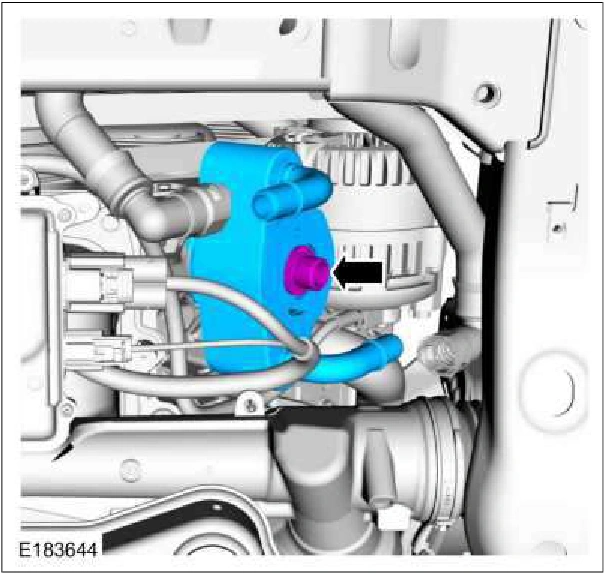

Oil Cooler — original illustration 2, reference 292Original colors & callouts · Select to enlarge

3. Connect the coolant hoses. Remove the hose locking pliers. Use the General Equipment: Locking Pliers
