Intake Manifold — 2016 workshop reference 285

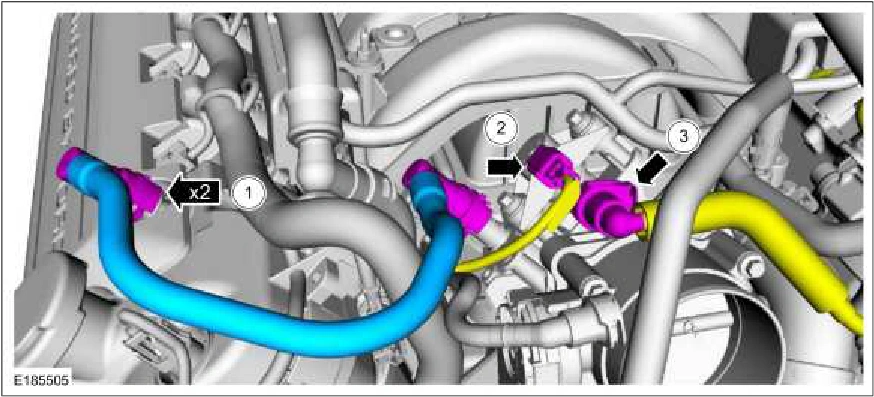

Intake Manifold — original illustration 1, reference 285Original colors & callouts · Select to enlarge

11. Connect the throttle body electrical connector.

Intake Manifold — original illustration 2, reference 285Original colors & callouts · Select to enlarge

12. Install the vacuum tube and clamps.

Connect the vacuum tube. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures). Attach the vacuum tube retainer.
