Rear Drive Axle and Differential — 2016 workshop reference 2682

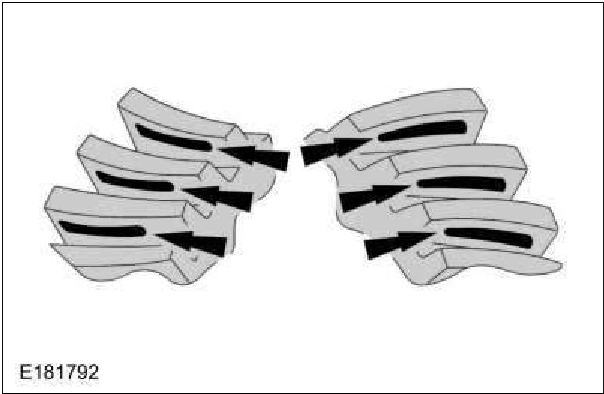

Rear Drive Axle and Differential — original illustration 1, reference 2682Original colors & callouts · Select to enlarge

Correct backlash with a thinner pinion position shim required.

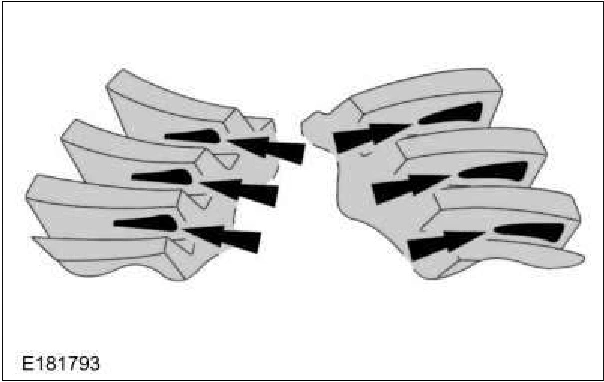

Rear Drive Axle and Differential — original illustration 2, reference 2682Original colors & callouts · Select to enlarge

Correct backlash with a thicker pinion position shim required.

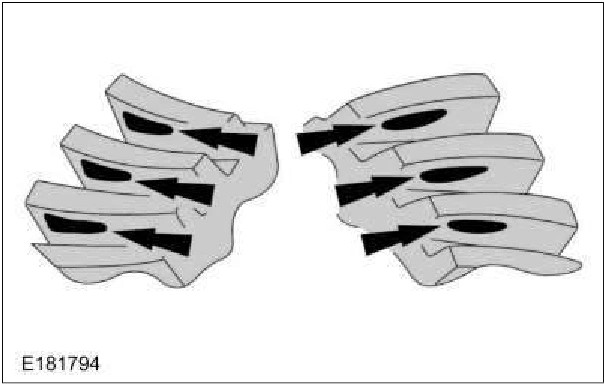

Rear Drive Axle and Differential — original illustration 3, reference 2682Original colors & callouts · Select to enlarge

Correct pinion position shim that requires a decrease in backlash.
