Axle and Differential Draining and Filling

205-02 Rear Drive Axle/Differential 2016 Mustang

General Procedures Procedure revision date: 07/28/2015

Materials

Name	Specification
Motorcraft® Additive Friction Modifier (U.S.) XL-3 (U.S.)	EST-M2C118-A
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL	WSS-M2C942-A

Draining

All vehicles

NOTE: Removal steps may contain installation information.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

Vehicles with a drain plug

2. Drain the differential gear lubricant. Torque : 25 lb.ft (34 Nm)

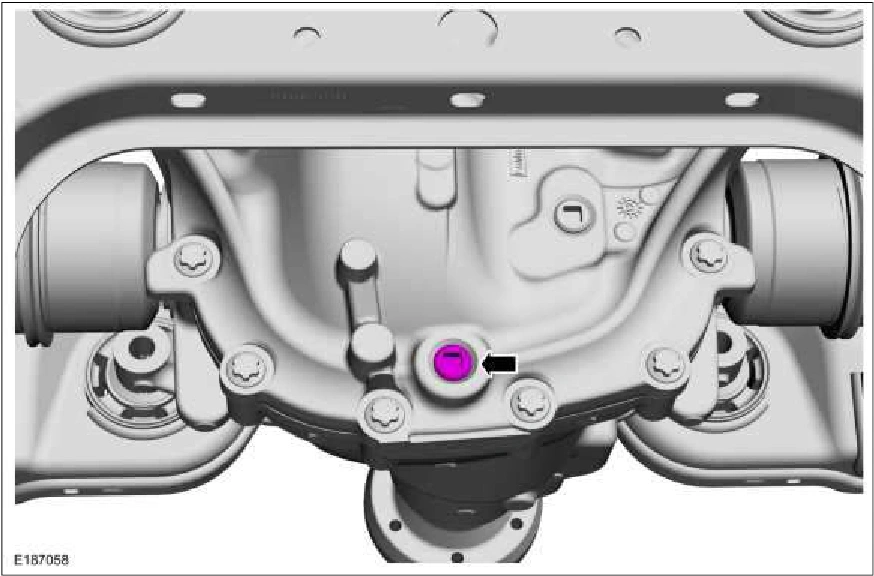

Axle and Differential Draining and Filling — original illustration 1, reference 2684Original colors & callouts · Select to enlarge

Vehicles equipped with a differential cooler

Step 3

1. Remove the cooling line retaining clip.

2. Remove the cooling line and position aside.

Source reference 2684
