Axle and Differential Draining and Filling — 2016 workshop reference 2686

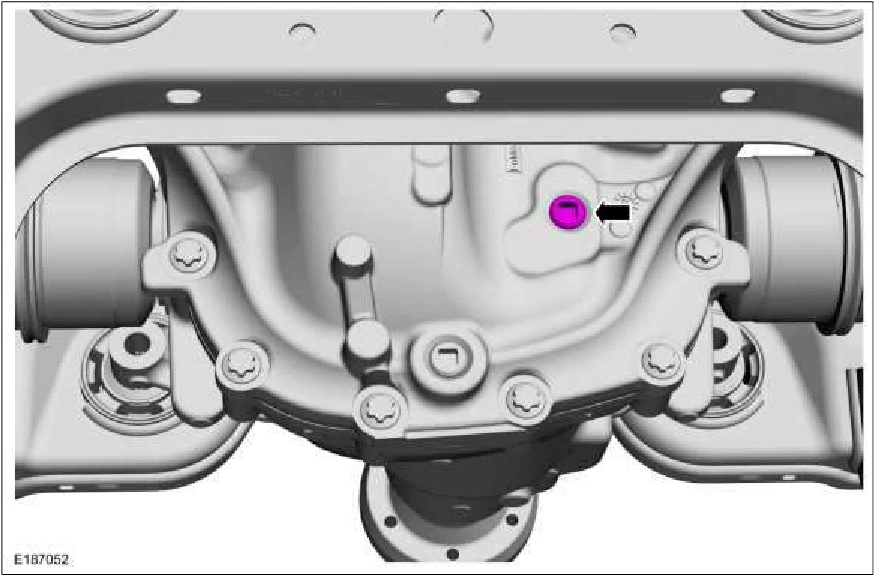

Axle and Differential Draining and Filling — original illustration 1, reference 2686Original colors & callouts · Select to enlarge

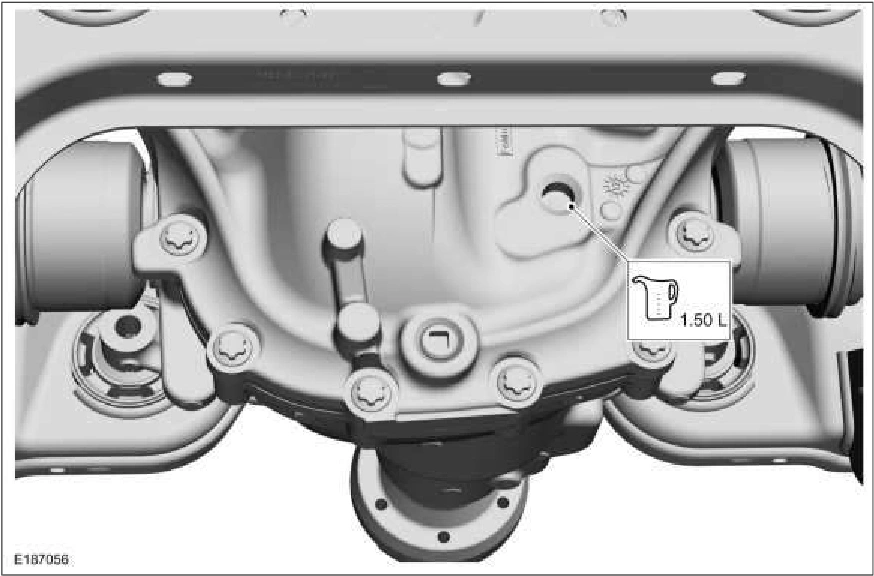

2. Fill the differential with 1.50 L (3.18 pts) of clean differential gear lubricant. Material : Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Axle and Differential Draining and Filling — original illustration 2, reference 2686Original colors & callouts · Select to enlarge

3. Fill the differential with 4.0 oz (0.118 L) of clean friction modifier. Material : Motorcraft® Additive Friction Modifier (U.S.) / XL-3 (U.S.) (EST-M2C118-A)
