Differential Fluid Level Check — 2016 workshop reference 2689

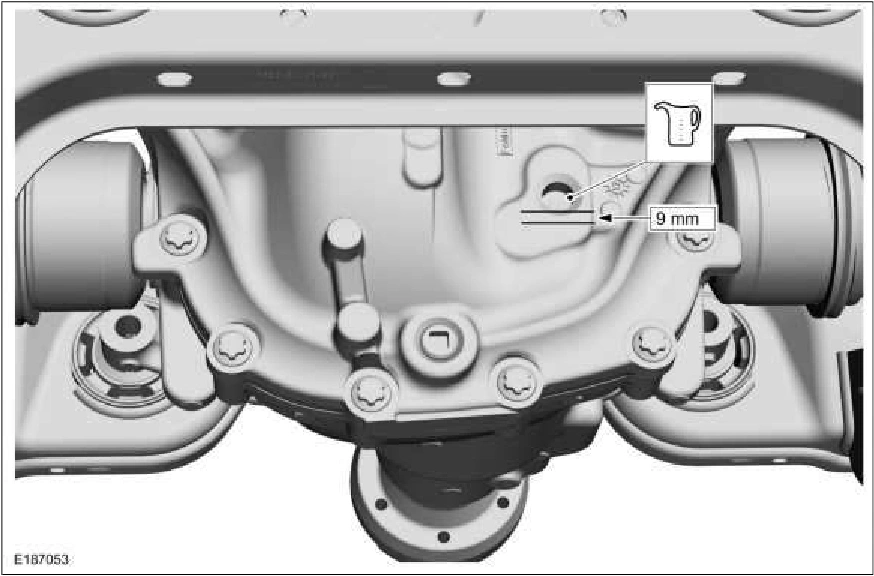

Differential Fluid Level Check — original illustration 1, reference 2689Original colors & callouts · Select to enlarge

4. Install the differential fluid fill plug. Torque : 25 lb.ft (34 Nm)

Differential Fluid Level Check — original illustration 2, reference 2689Original colors & callouts · Select to enlarge

5. If equipped with a differential cooler, operate the differential cooler pump with a scan tool for two minutes and repeat steps 1 thru 4.
