Axle and Differential Draining and Filling — 2016 workshop reference 2687

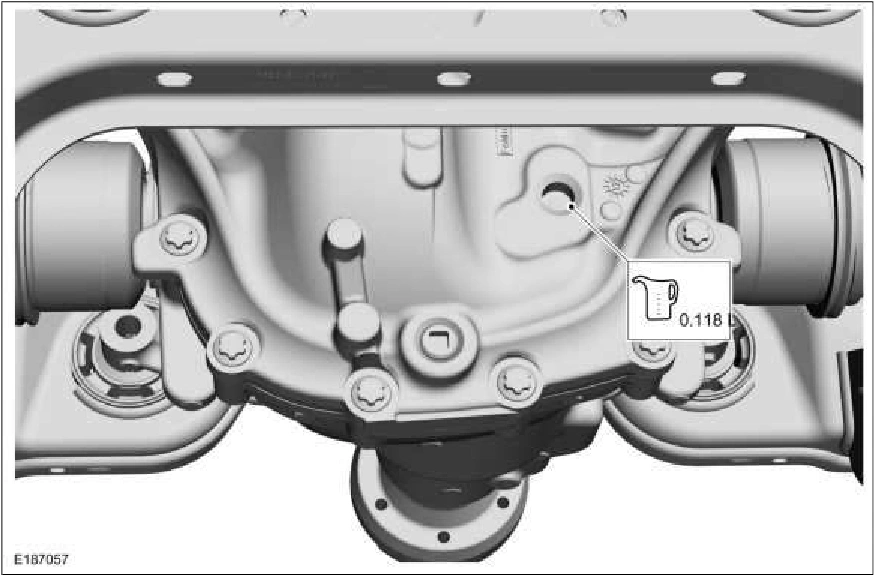

Axle and Differential Draining and Filling — original illustration 1, reference 2687Original colors & callouts · Select to enlarge

4. Install the differential fill plug. Torque : 25 lb.ft (34 Nm)

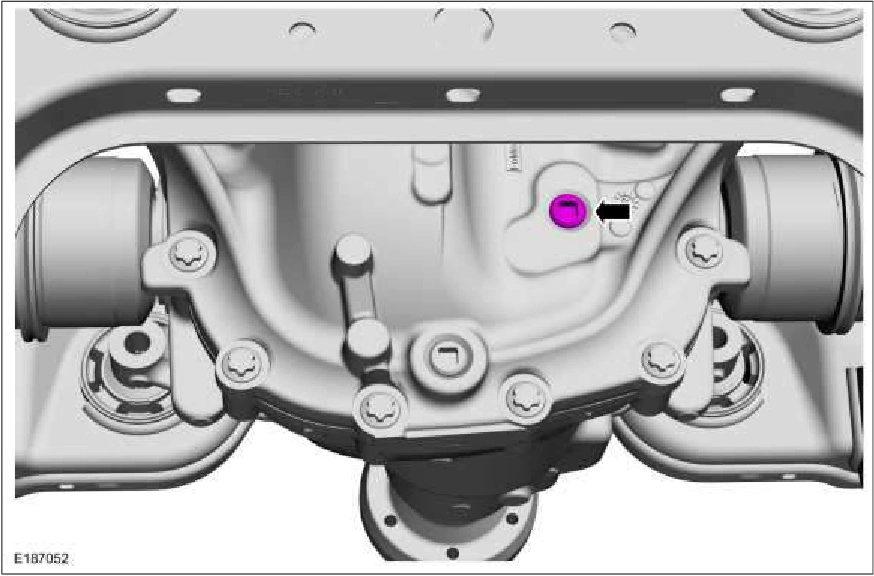

Axle and Differential Draining and Filling — original illustration 2, reference 2687Original colors & callouts · Select to enlarge

5. NOTE: The differential gear lubricant level should be within 9mm (0.354 in.) from the fluid level fill plug opening.

If equipped with a differential cooler, operate the differential cooler pump with a scan tool for two minutes and top off differential fluid. Material : Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)
