Axle and Differential Draining and Filling — 2016 workshop reference 2685

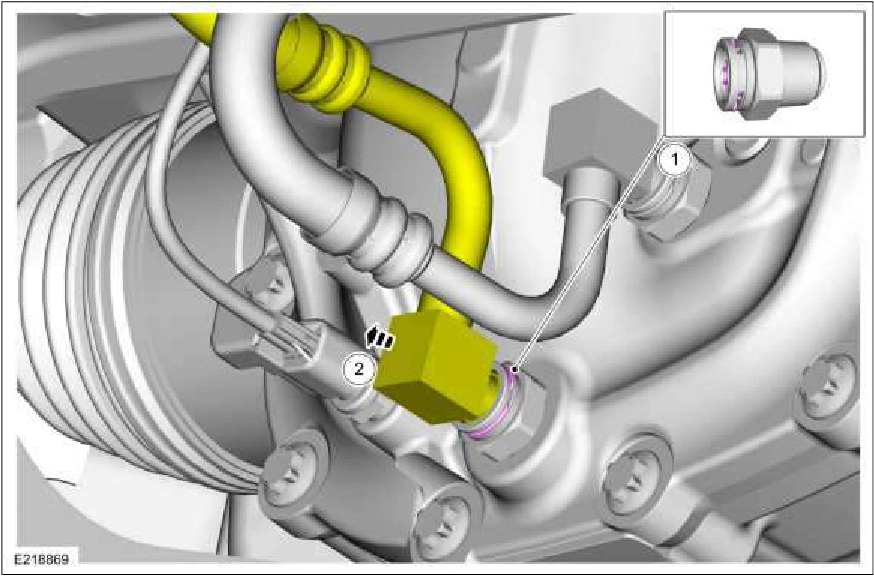

Axle and Differential Draining and Filling — original illustration 1, reference 2685Original colors & callouts · Select to enlarge

Step 4

1. Remove the differential cooling line fitting.

2. Inspect the differential cooling line fitting. Torque : 17 lb.ft (23 Nm)

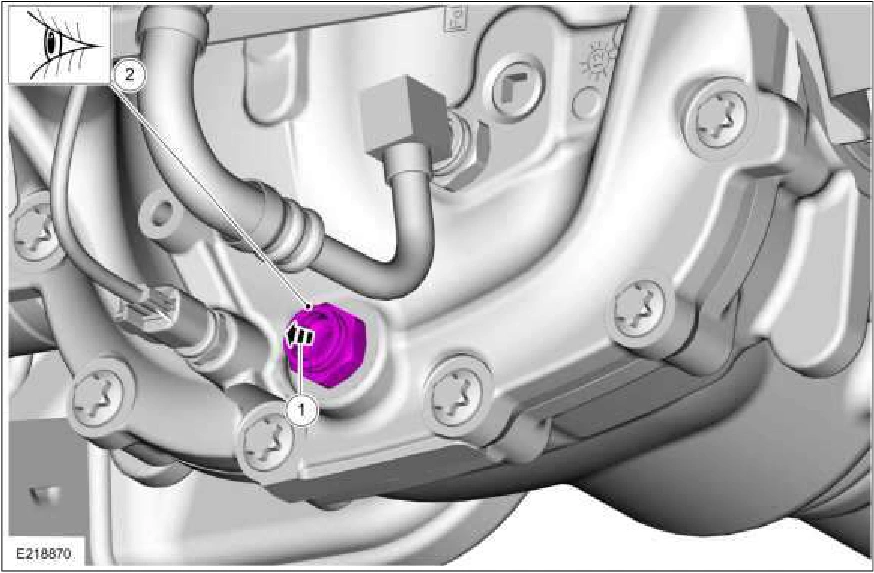

Axle and Differential Draining and Filling — original illustration 2, reference 2685Original colors & callouts · Select to enlarge

Vehicles without a drain plug

5. Remove the differential housing cover to drain the fluid. Refer to: Differential Housing Cover (205-02 Rear Drive Axle/Differential, Removal and Installation).

Filling

1. Remove the differential fill plug.

Source reference 2685
