10. NOTE: Have the selected shims available at this time. It will be required to hold the differential carrier and the differential carrier bearing cups in until shims are installed.

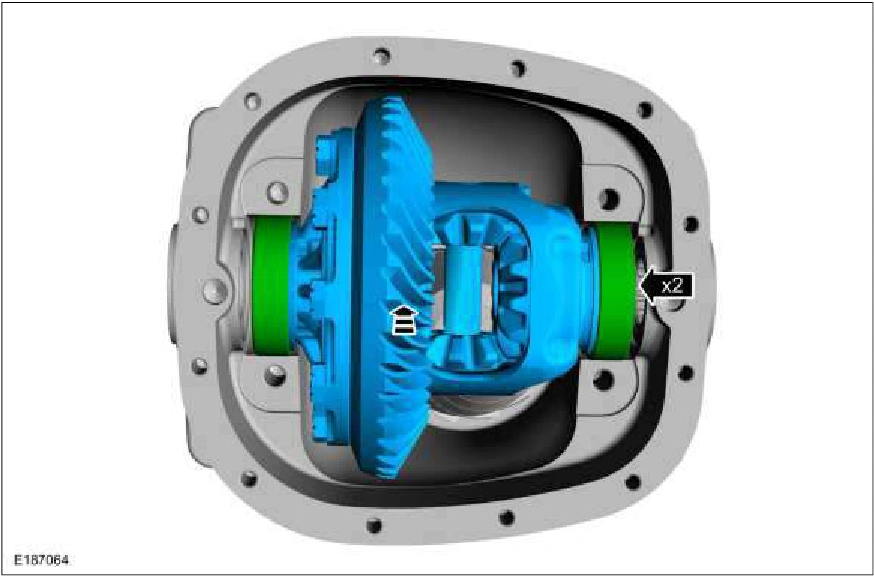

Remove the dial indicator. Install the differential carrier and the differential carrier bearing cups.
11. NOTE: Differential bearing shims are to be installed with the chamfer facing outboard.
Install the selected or original RH differential bearing shim. If the original RH shim is not available, install the largest shim available.
NOTE: The differential bearing cap bolts should only be finger tight at this time.
