Ring Gear Backlash Adjustment — 2016 workshop reference 2697

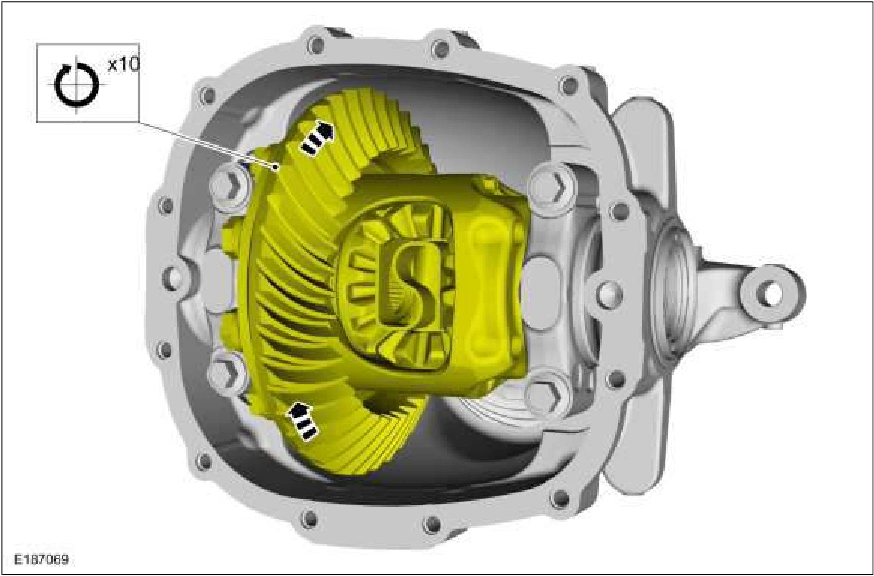

Ring Gear Backlash Adjustment — original illustration 1, reference 2697Original colors & callouts · Select to enlarge

16. Using the dial indicator gauge with holding fixture, do a final check of the ring gear backlash. Refer to: Specifications (205-02 Rear Drive Axle/Differential, Specifications). Use the General Equipment: Dial Indicator

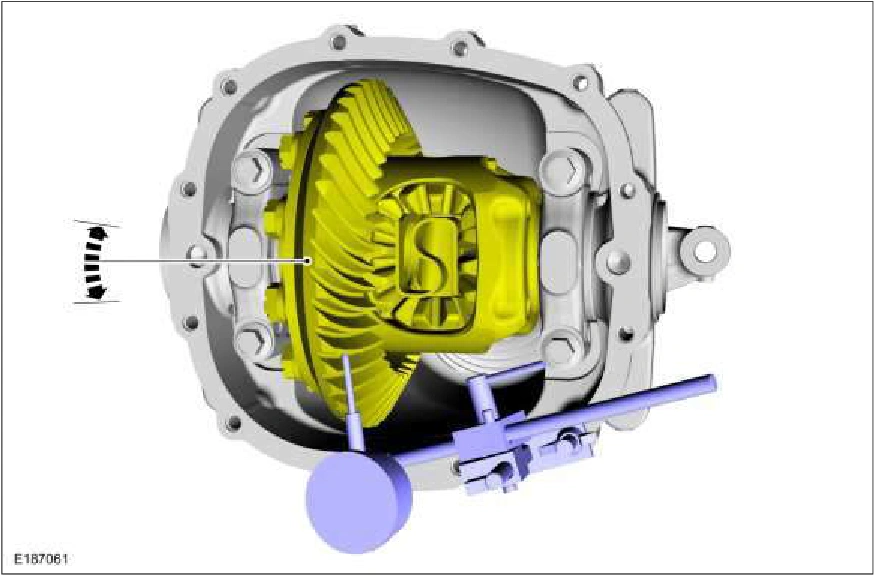

Ring Gear Backlash Adjustment — original illustration 2, reference 2697Original colors & callouts · Select to enlarge

Source reference 2697
